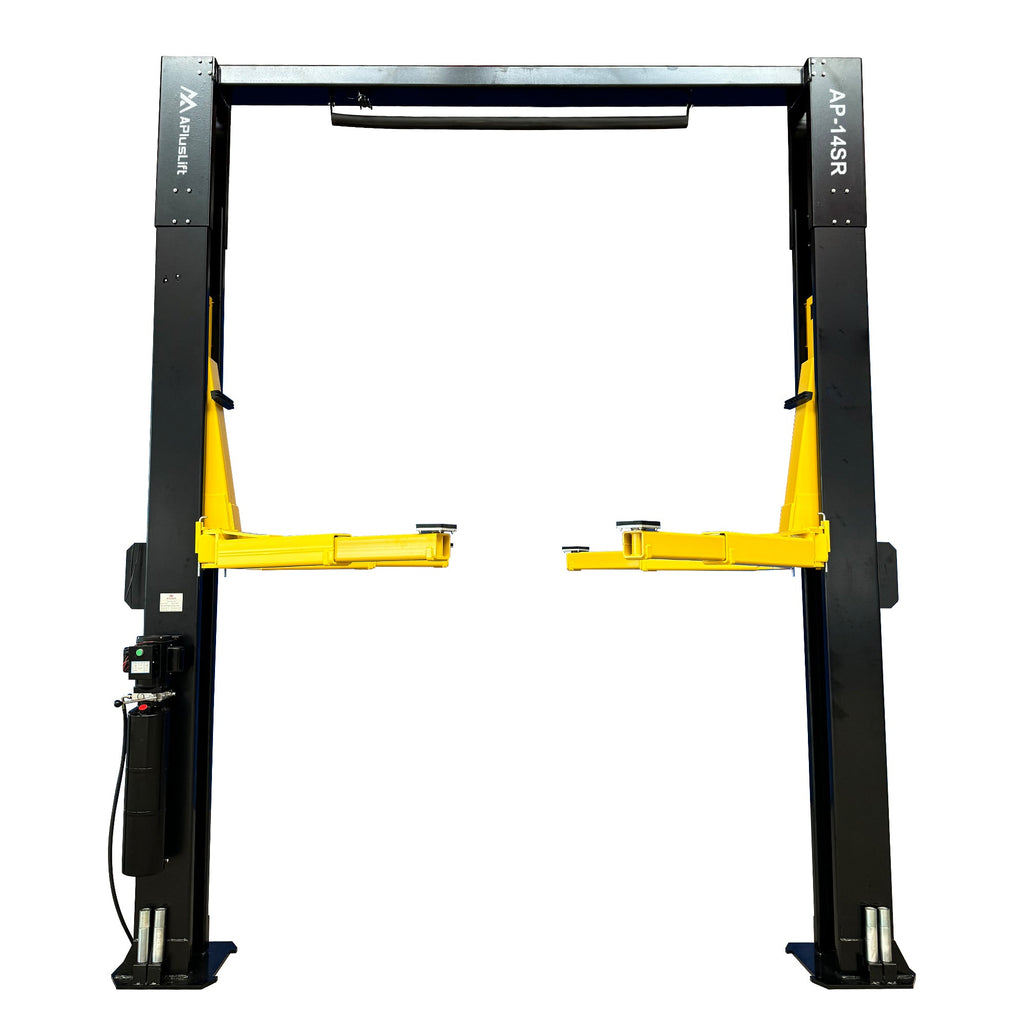

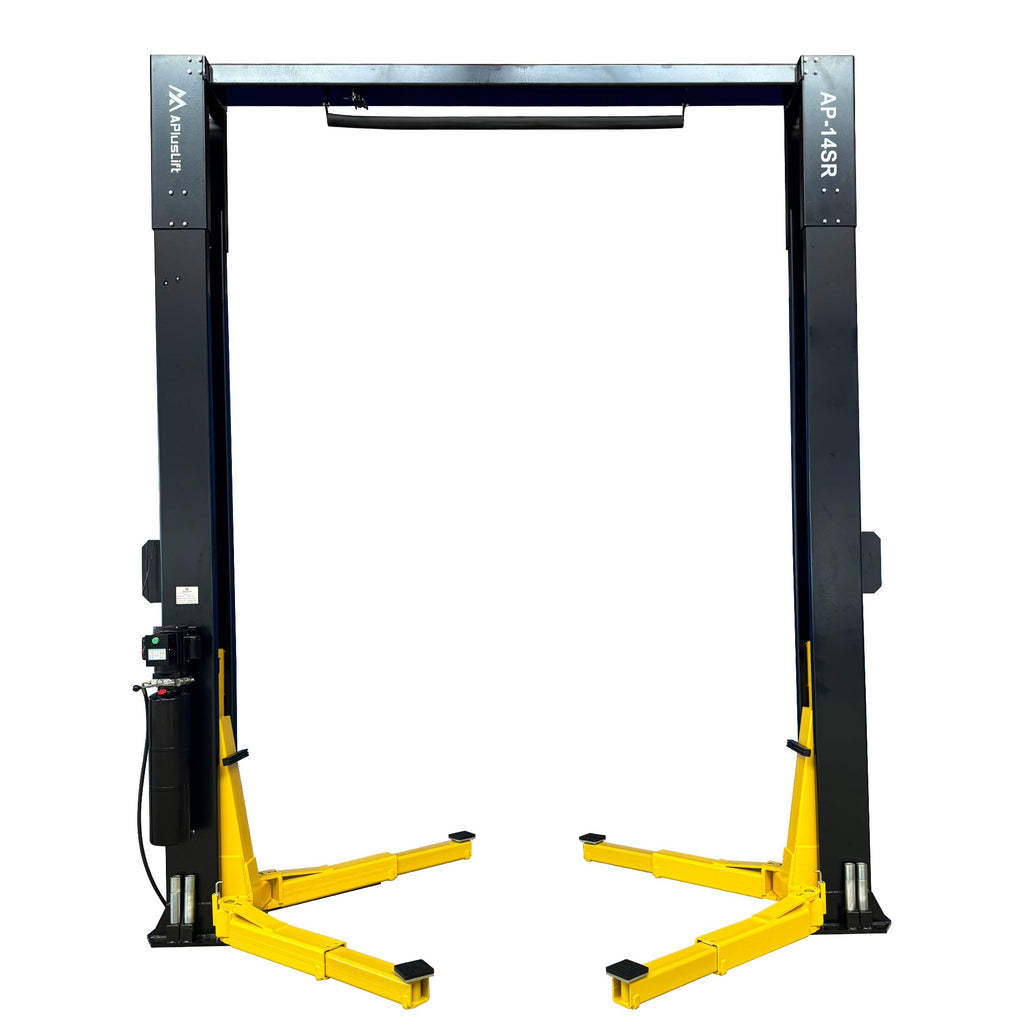

APlusLift 14000LB 2-Post Overhead Single Release Direct Drive Car Lift with A 3-Year Warranty - AP-14SR
FORKLIFT ONSITE OR TERMINAL PICKUP
Sale price
$3,895.00
Regular price
$5,295.00
Skip to product information
APlusLift 14000LB 2-Post Overhead Single Release Direct Drive Car Lift with A 3-Year Warranty - AP-14SR
Sale price
$3,895.00
Regular price
$5,295.00
FREE SHIPPING
Ships within 24 hours - Nationwide delivery
NO TAX
Save on sales tax - Applied at checkout
All 2-Post Car Lifts
-
Industry leading 3 YEAR WARRANTY (a $499 value!)
-
Single Point Safety Lock Release System
-
Two Set of 2 3/4" Tall and 5 1/2" Tall Truck Adapters Included; 6'7" Lift Height Maximum with Truck Adapters
-
CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
-
All Robot Welded Structure with Durable Powder Coated Finish

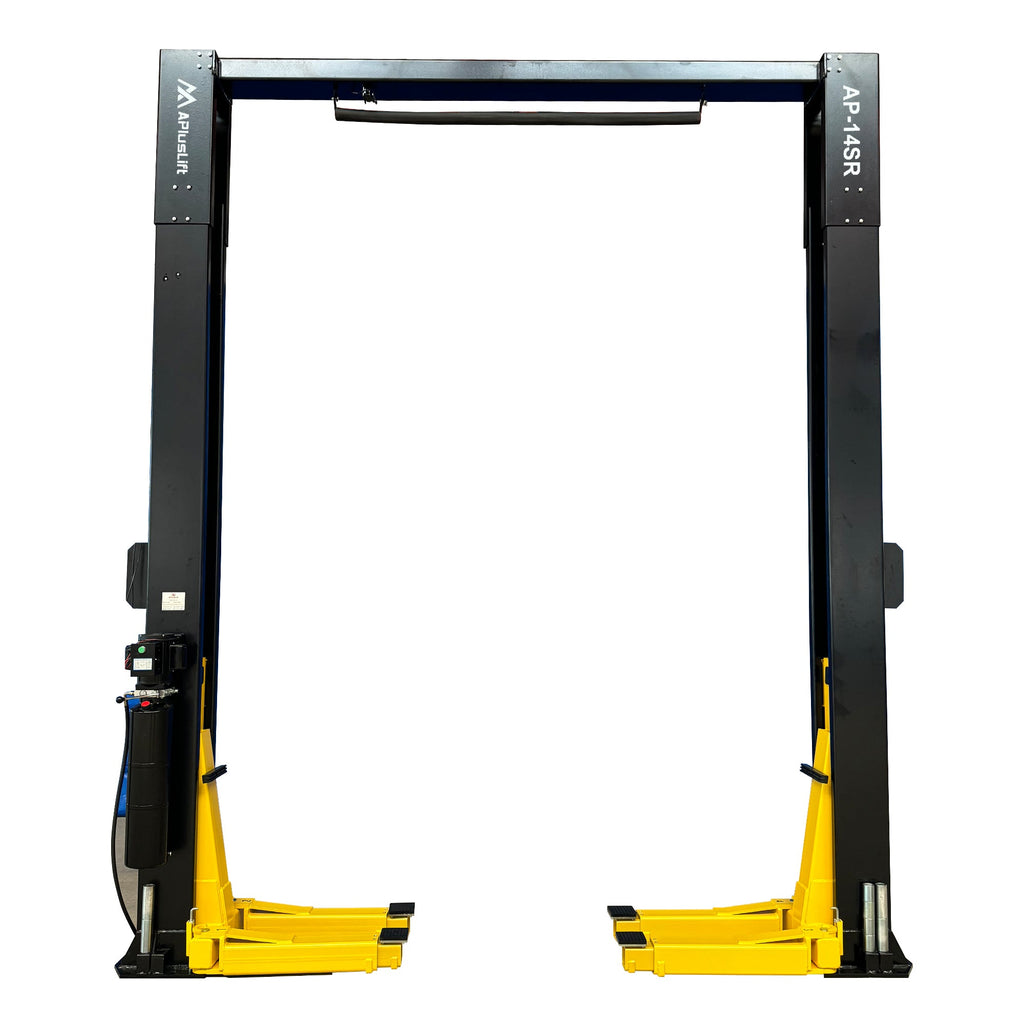

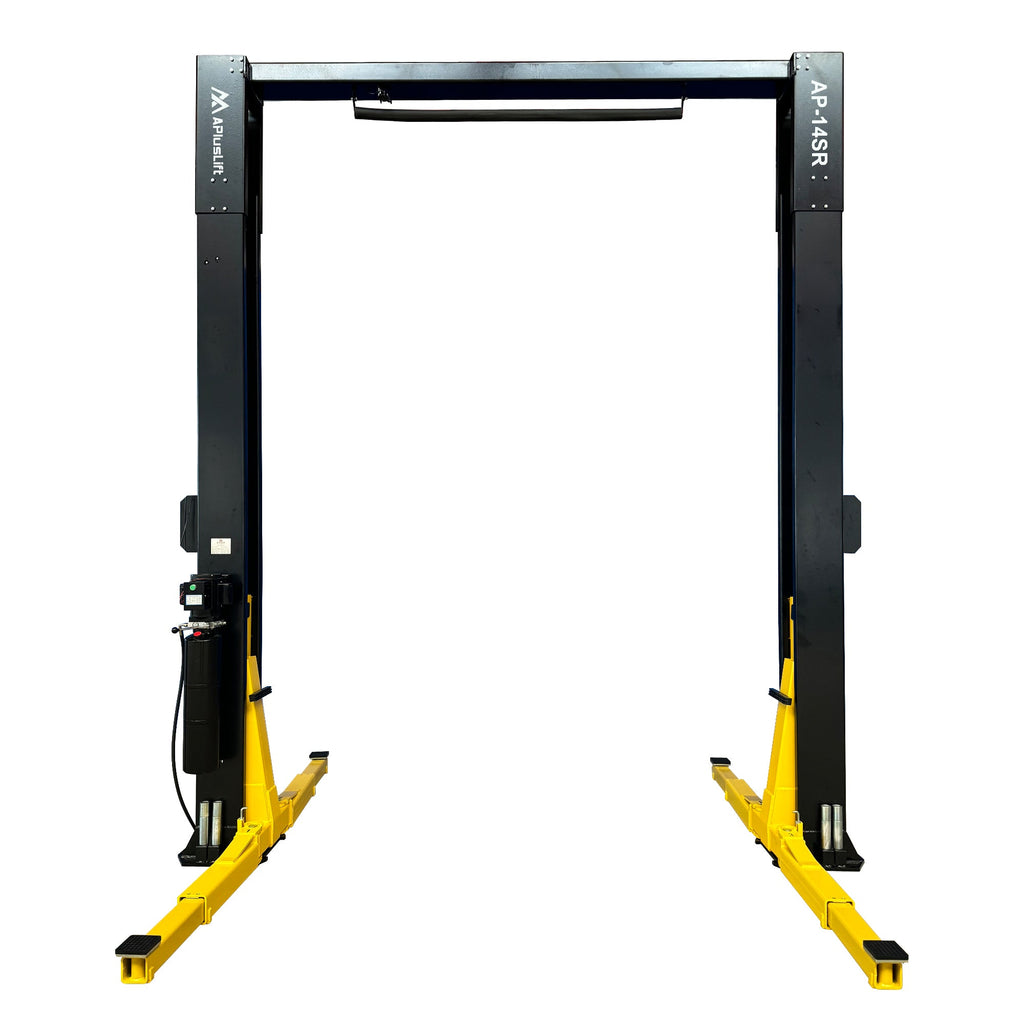

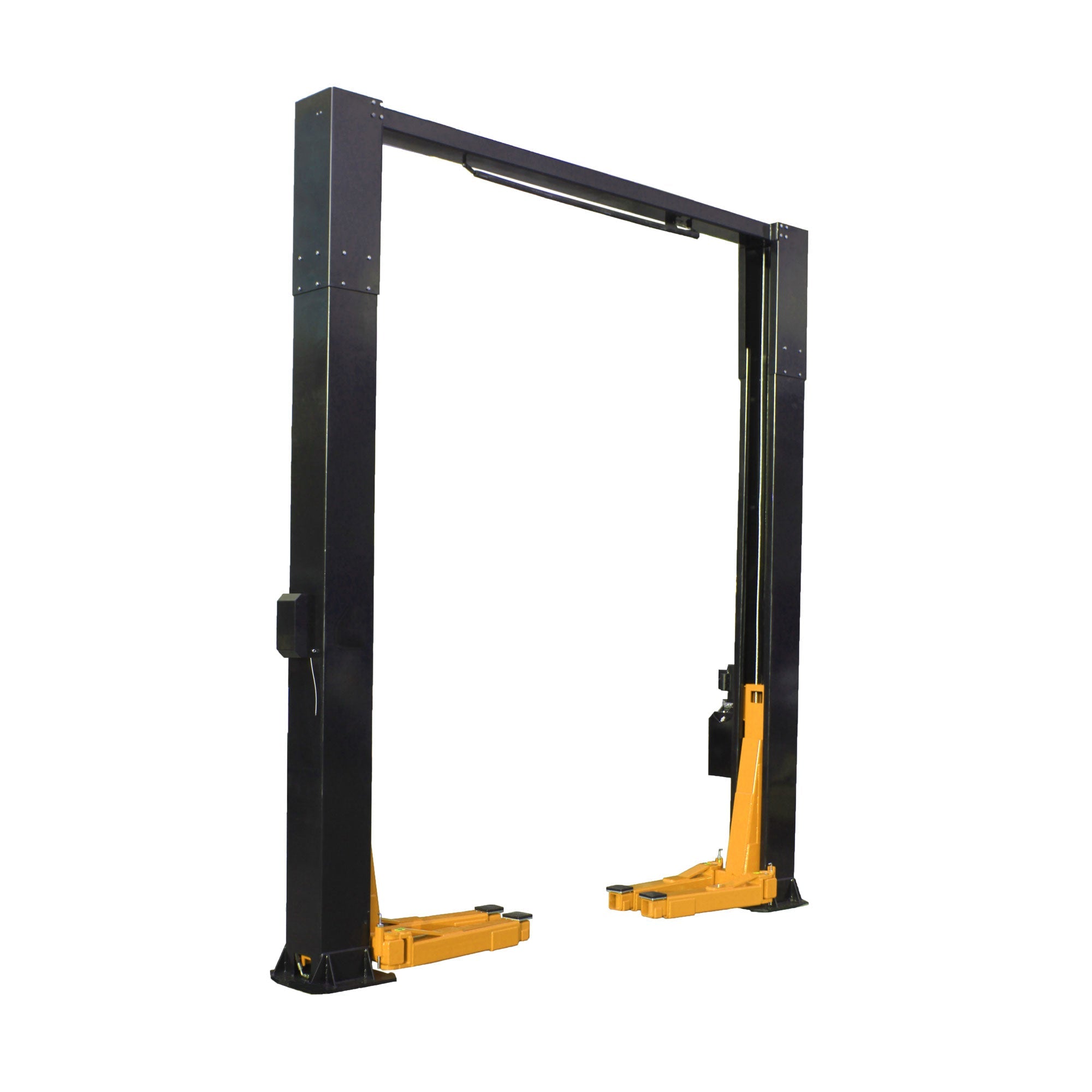

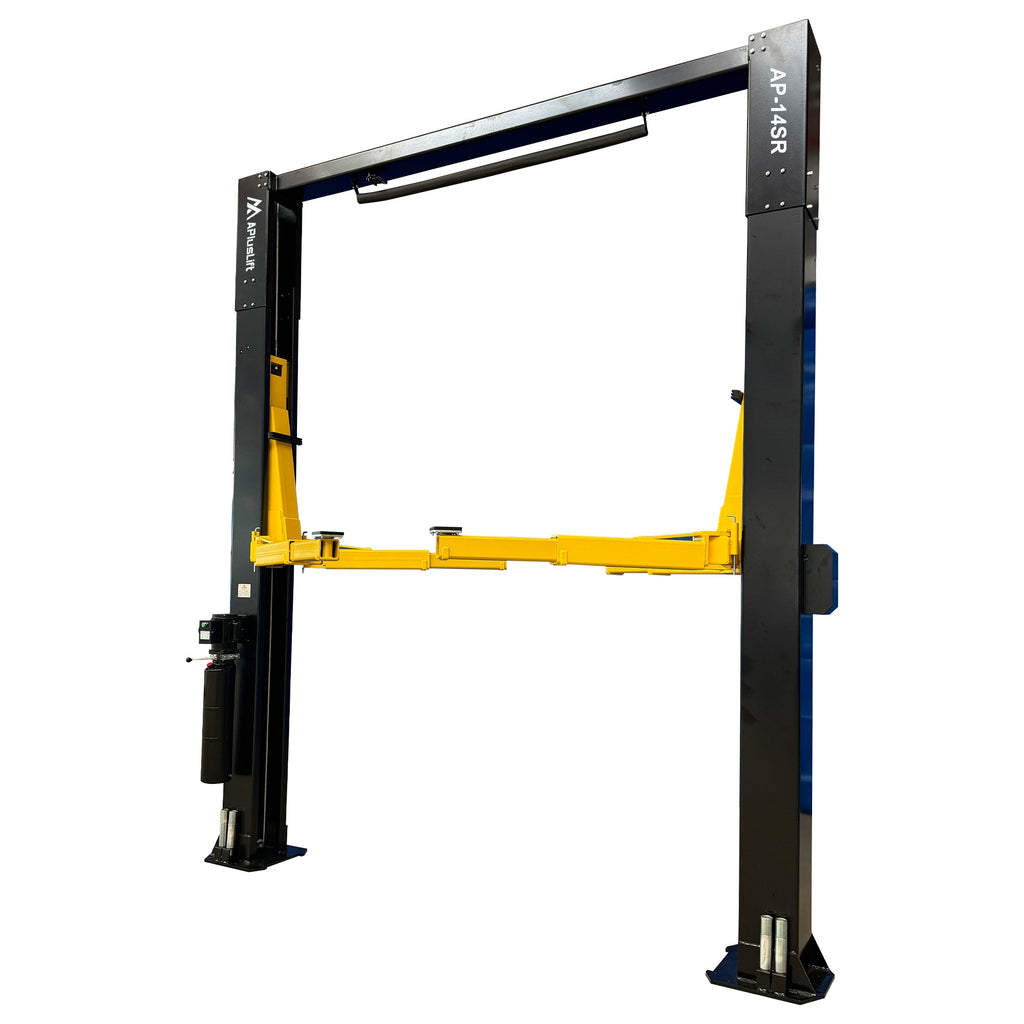

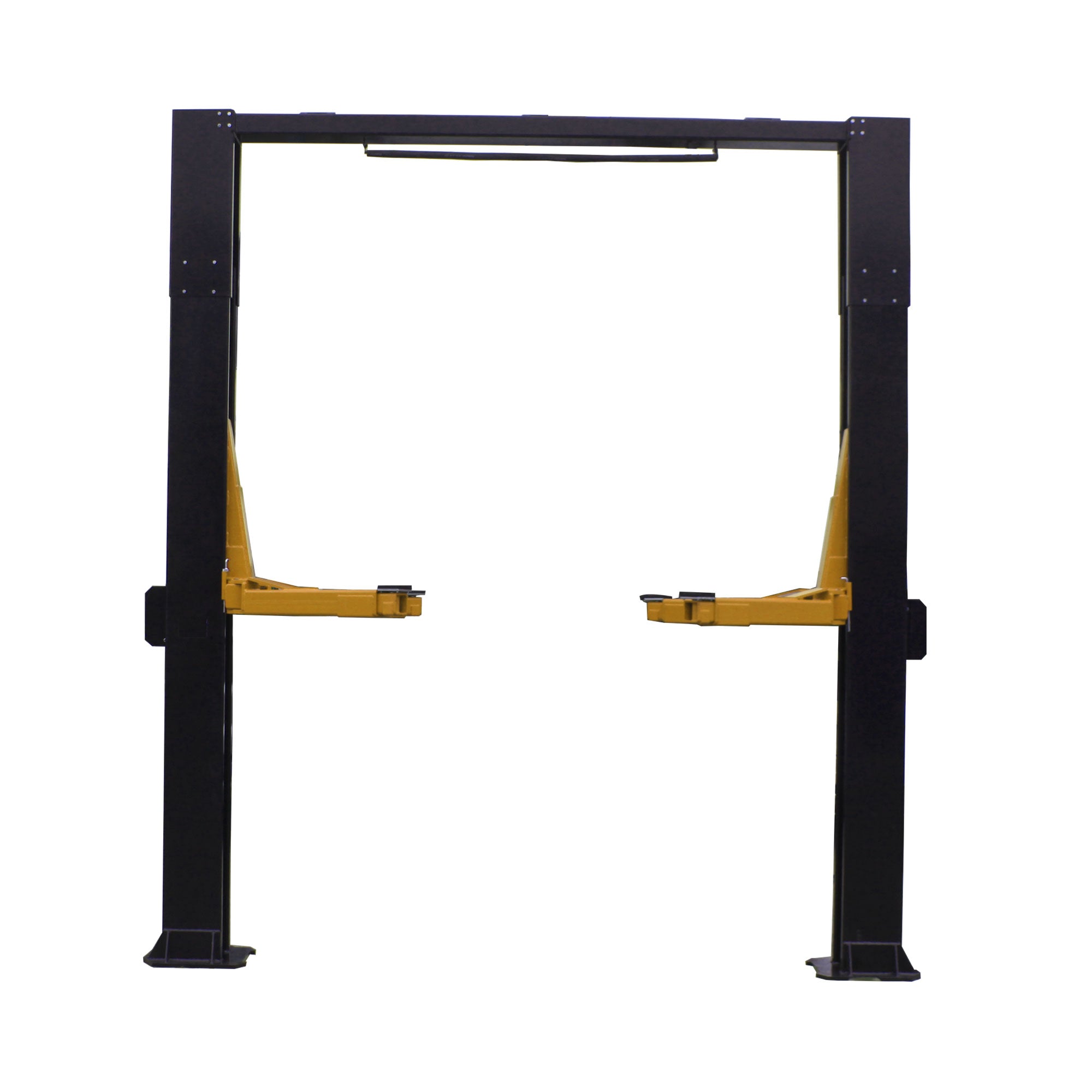

APlusLift AP-14SR is a 14,000LB single point release overhead car lift (auto hoist) built with quality materials and good workmanship.
We are proud to offer an industry leading 3 year warranty for all parts (a $499 value)! We have all replacement and optional parts available for our lifts.
Free shipping to a commercial address (in a business zone) with forklift or a nearby freight terminal in the lower 48 states. Residential address has $60 additional charge. No liftgate service as the car lift package is too long. Please prepare your own unloading equipment such as a forklift, bobcat, cherrypicker, or flatbed truck to unload (We strongly recommend NOT to rent a forklift). Additional freight charges may apply for remote areas and high cost delivery areas.
Warehouse Pickup Locations (Contact Us for $400 Discount): Charlotte (NC), Chicago (IL), Dallas (TX), Jacksonville (FL), Kansas City (MO), Mobile (AL), Mansfield (OH), Tacoma (WA).
Frequently Asked Product, Order, and Shipping Questions and Technical Questions

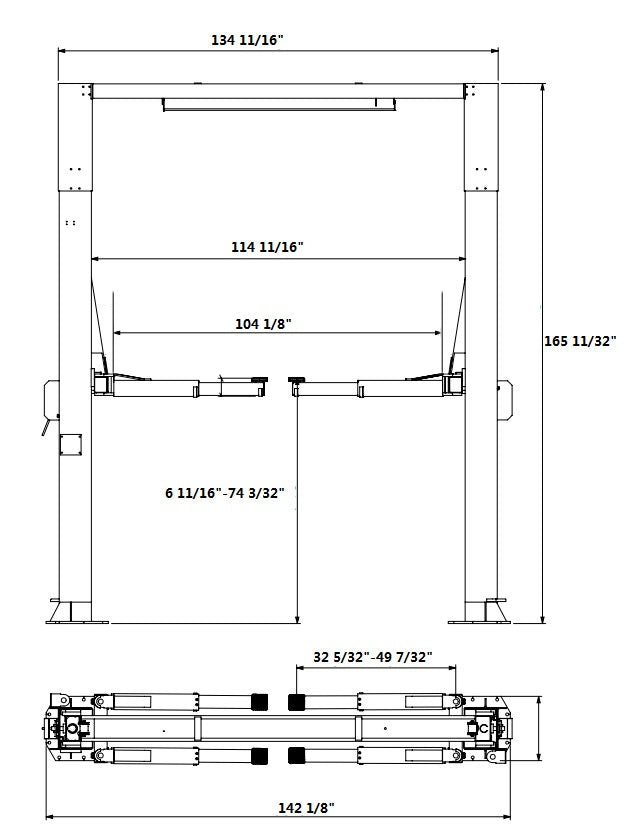

Specifications | |||||||||
| Model | AP-14SR (This Model) | AP-20SR (for Comparison) | |||||||
| Manual | AP-14SR Manual | AP-20SR Manual | |||||||
| Style | Overhead | Overhead | |||||||
| Lock Release | Single Point Release | Single Point Release | |||||||
| Warranty | 3 Years (36 Months) | 3 Years (36 Months) | |||||||
| Lifting Capacity | 14,000 LB | 20,000 LB | |||||||
| Overall Height | 165 11/32" | 170 13/32" | |||||||
| Overall Width | 142 1/8" | 155" | |||||||
| Maximum Lift height with Truck Adapters | 79 19/32" | 79 19/32" | |||||||
| Maximum Lift height without Truck Adapters | 74 3/32" | 74 3/32" | |||||||
| Minimum Height of Adjustable Pads from Ground | 6 11/16" | 6 5/32" | |||||||
| Drive Through Width (Carriage to Carriage) | 104 1/8" | 113 1/16" | |||||||
| Column Inside to Inside | 114 11/16" | 123 3/8" | |||||||
| Column Outside to Outside | 134 3/8" | 147" | |||||||
| Column Cross Section | 12 7/32"L x 9 27/32"W | 12 7/32"L x 11 13/16"W | |||||||
| Driving Mode | Dual hydraulic cylinders, direct drive | ||||||||

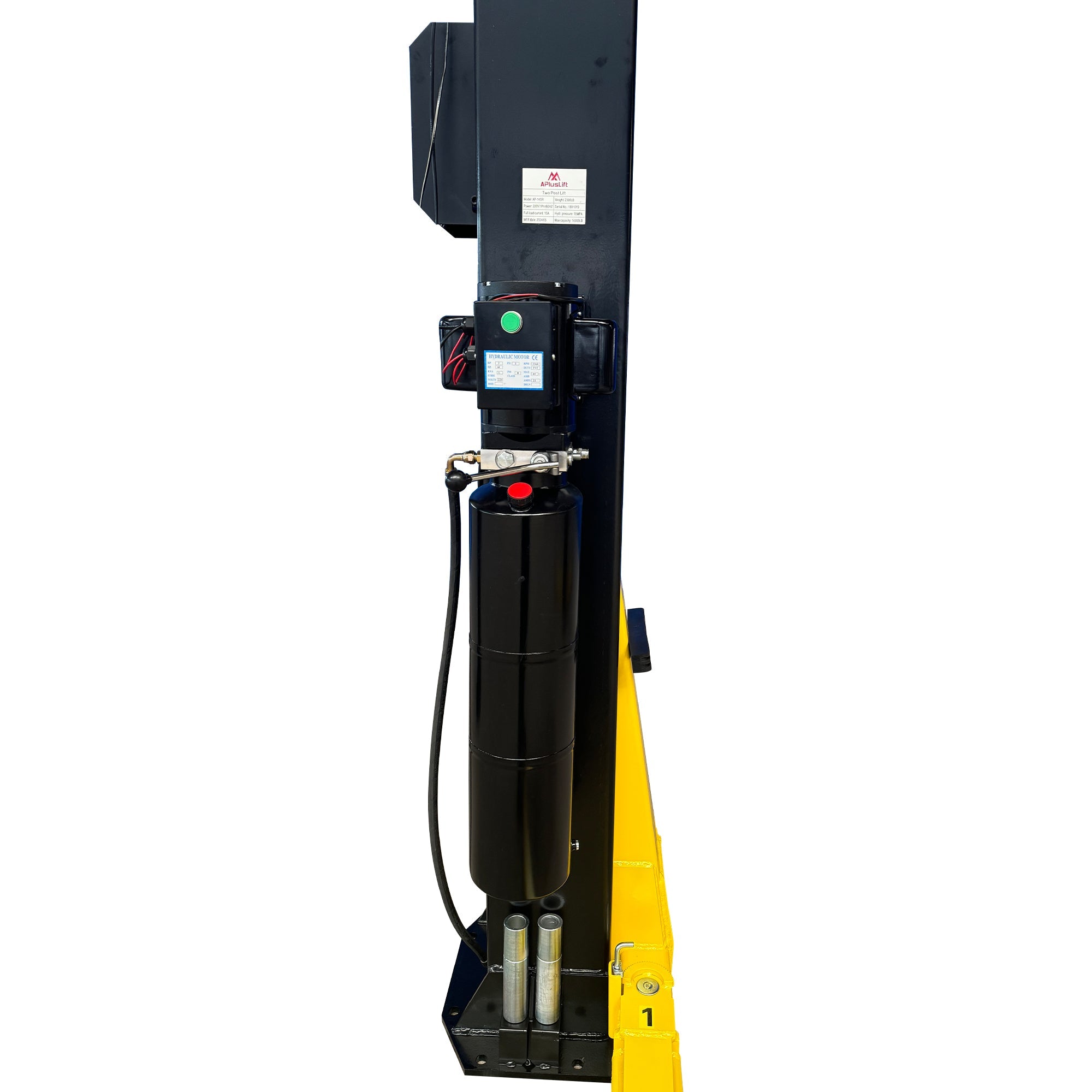

| Motor | 220V Single Phase 3HP (recommend a 20A breaker) | ||||||||
| Hydraulic Oil | 3.2-5 gallons AW32/AW46 (Not Included) | 5.3-6 gallons AW32/AW46 (Not Included) | |||||||
| Time to full rise | 75 seconds | ||||||||
| Shipping Weight | 2300 LB | 2900LB | |||||||
| Shipping package size | 150"L x 33"W x 21"H | 145 11/16"L x 32 11/16"W x28 15/16"H | |||||||
| Arm Assembly | Symmetrical Arm Assembly | ||||||||

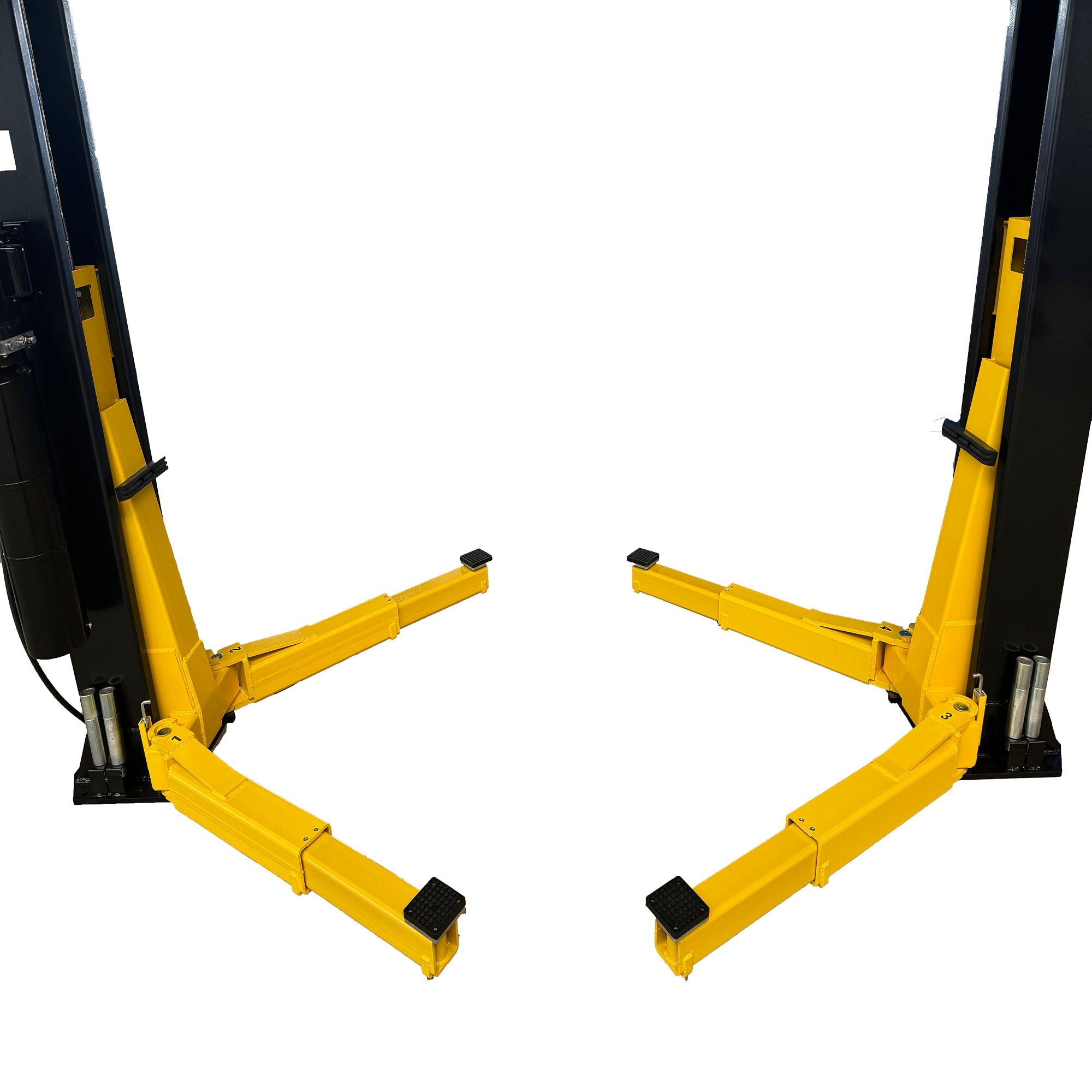

| Front Arms | Straight Front 2 stages reach from 32 5/32" to 49 7/32" | Straight Front 2 stages reach from 37" to 59 1/16 | |||||||
| Back Arms | Straight Rear 2 stages reach from 32 5/32" to 49 7/32" | Straight Rear 2 stages reach from 37" to 59 1/16" | |||||||
| Column Steel Thickness | 1/4" | 1/4" | |||||||
| Carriage Steel Thickness | 1/4" | 13/32" | |||||||
| Carriage Yoke Thickness | 13/32" | 13/32" | |||||||
| Arm Steel Thickness | 5/16" | 5/16" | |||||||
| Base Plate Steel Thickness | 5/8" | 25/32" | |||||||
| Truck Adapters (Height Extensions) | Two Sets: 4pcs: 5 1/2" Tall 4pcs: 2 3/4" Tall | Two Sets: 4pcs: 5 1/2" Tall 4pcs: 2 3/4" Tall | |||||||
| Other Parts Included |
| ||||||||
| Optional Parts | 2 3/4" and 6" Tall Truck Adapters | ||||||||
| Concrete Requirement | 6" thick at 3500 psi reinforced with fiberglass or steel | ≥13" thick ≥C25 strength | |||||||
| Model | AP-14SR (This Model) | HW-12HD (for Comparison) | |||||||
Features
- Direct drive mode
- Durable hydraulic system
- Easy to operate and maintain
- Single point safety lock release
- Double Seal Rings Protecting PU Material
- Carriage and Column Material Q235B Steel

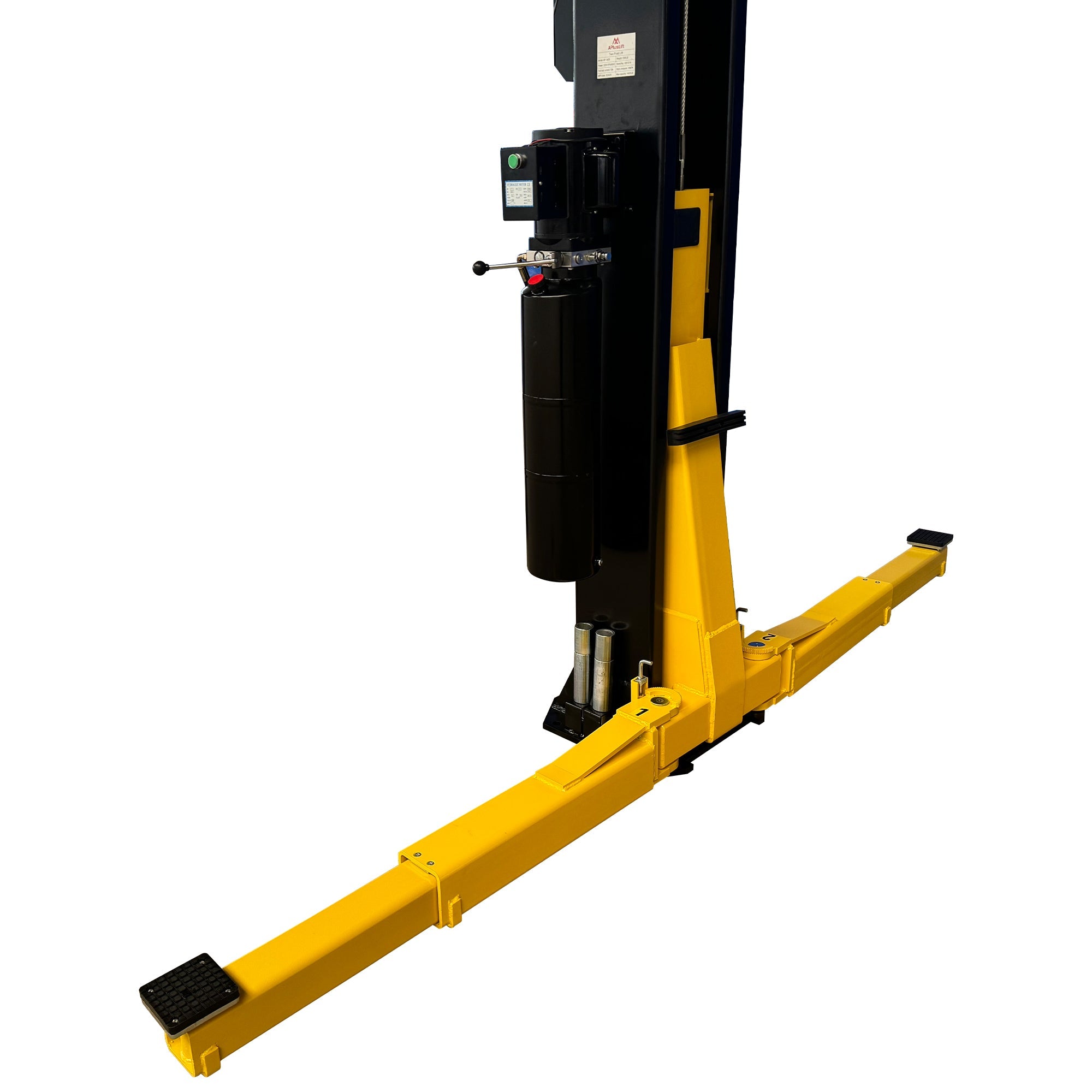

- Lifting operation by pressing "UP" button on motor
- Manual lowering operation by pressing lever
- Relief valve built in power pump to prevent overloading
- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/8" diameter cable and 3" pulley that reduce high stress on synchronization process and increase cable life
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
