APlusLift 10,000LB 2-Post Floor Plate Heavy Duty Car Lift with 3 Year Warranty - HW-10KBP-A
Forklift Onsite or Terminal Pickup
Sale price
$1,549.00
Regular price
$2,779.00
Skip to product information
APlusLift 10,000LB 2-Post Floor Plate Heavy Duty Car Lift with 3 Year Warranty - HW-10KBP-A
Sale price
$1,549.00
Regular price
$2,779.00
FREE SHIPPING
Ships within 24 hours - Nationwide delivery
NO TAX
Save on sales tax - Applied at checkout
All 2-Post Car Lifts
-
Industry leading 3 YEAR WARRANTY (a $499 value!)
-

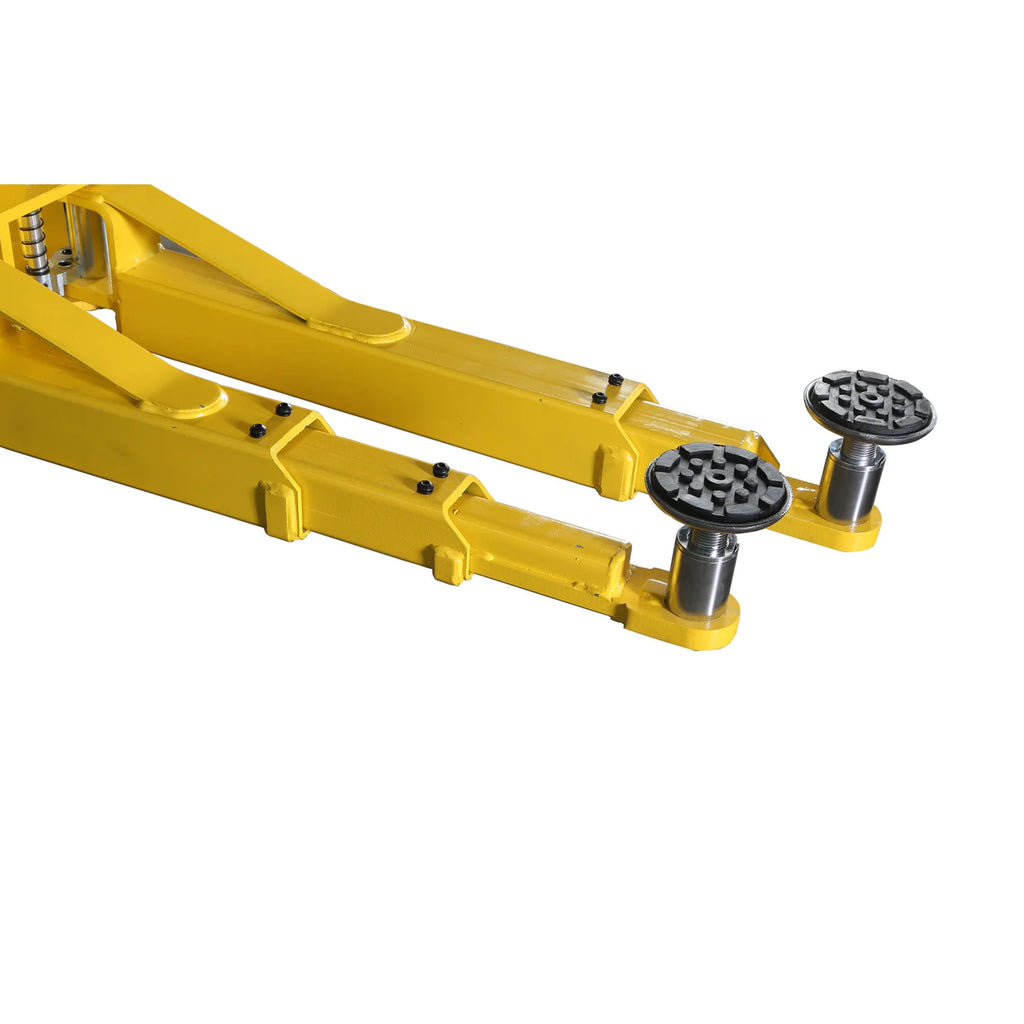

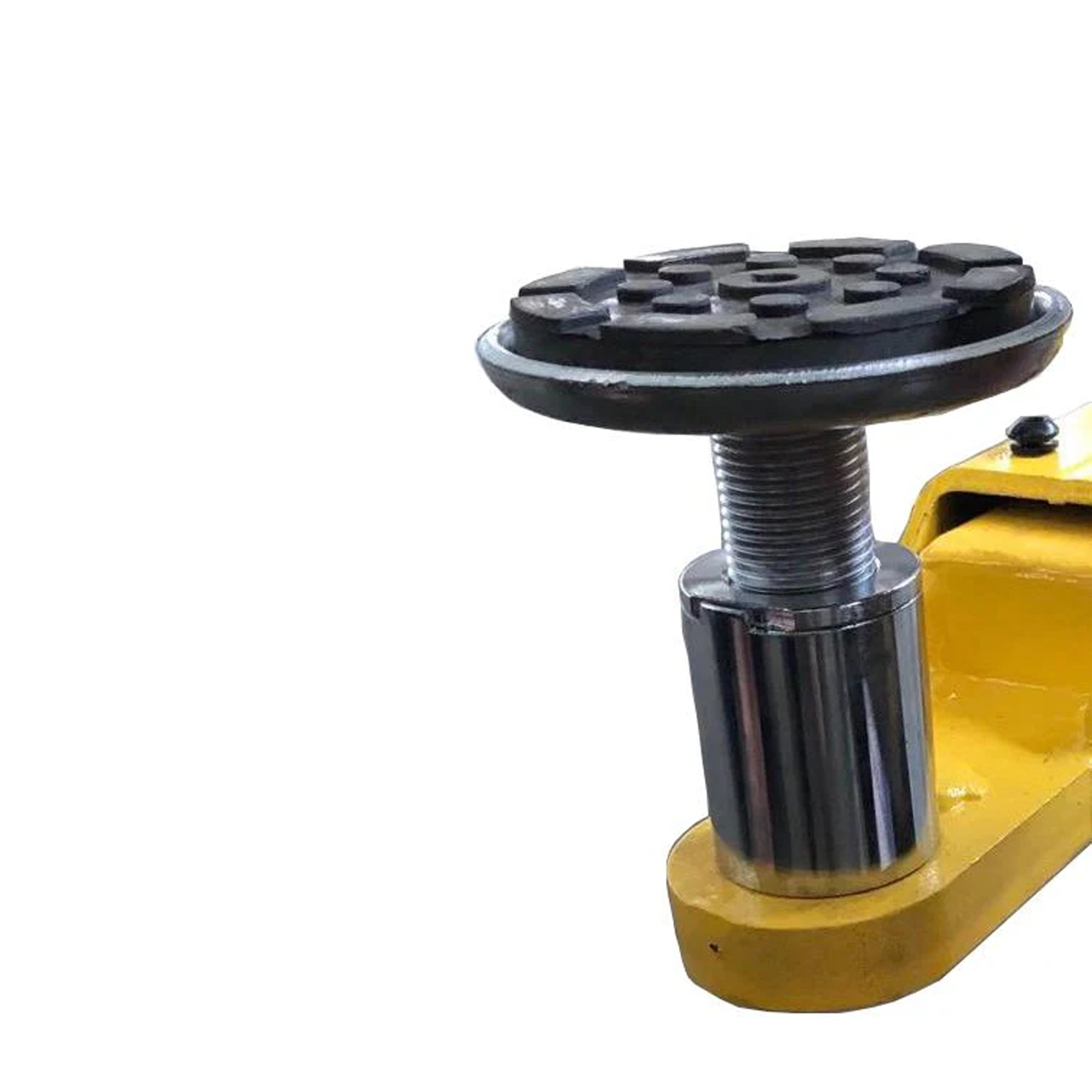

Combo (symmetrical and asymmetrical) Arm Assembly with Adjustable Screw Pads!
-
CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
-
One Set of 4" Tall Truck Adapters Included; 6'9" Lift Height Maximum with Truck Adapters
-
All Robot Welded Structure with Durable Powder Coated Finish
-

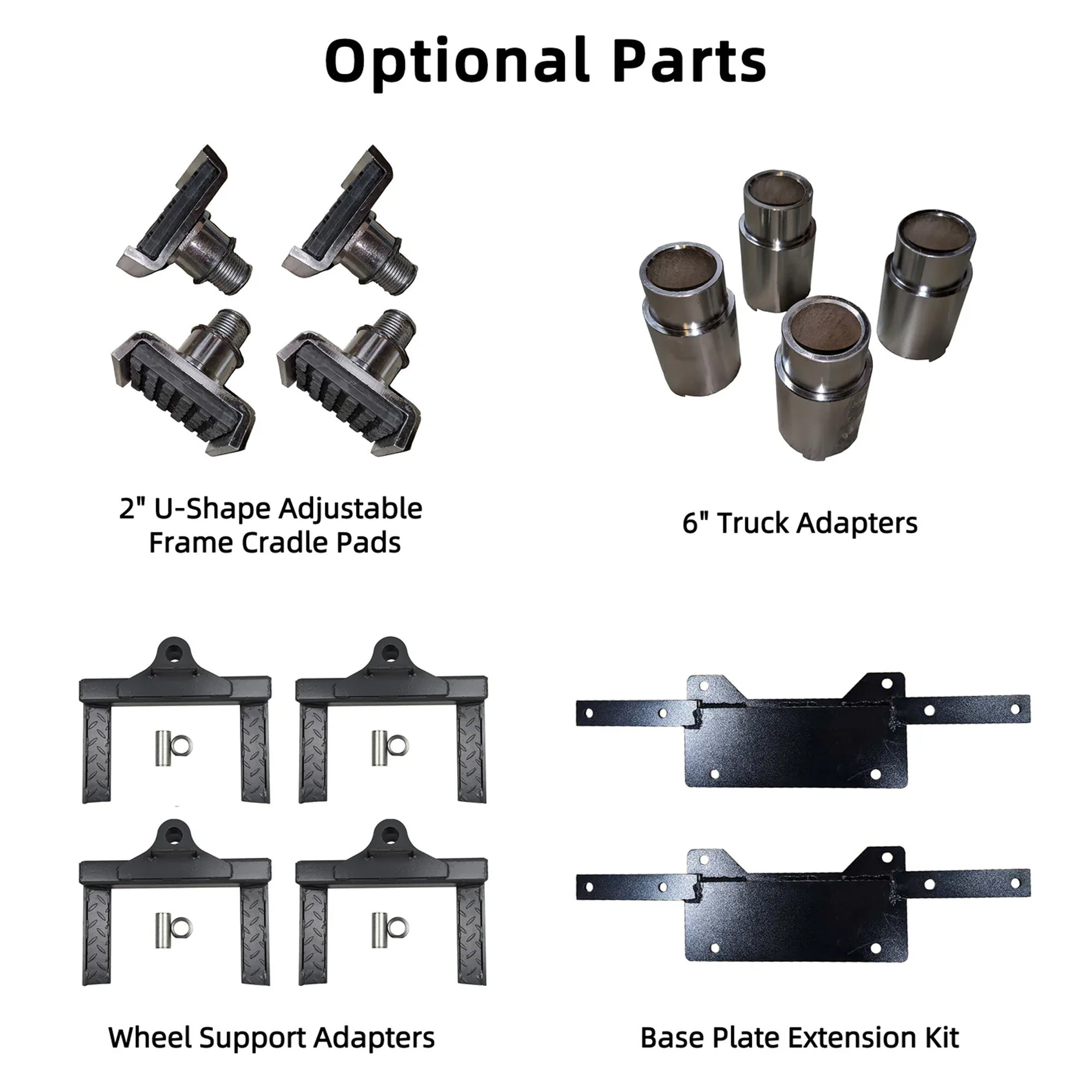

Optional Parts: 2" U-Shape Adjustable Frame Cradle Pads, 6" Truck Adapters, Wheel Support Adapters, and Base Plate Extension Kit.

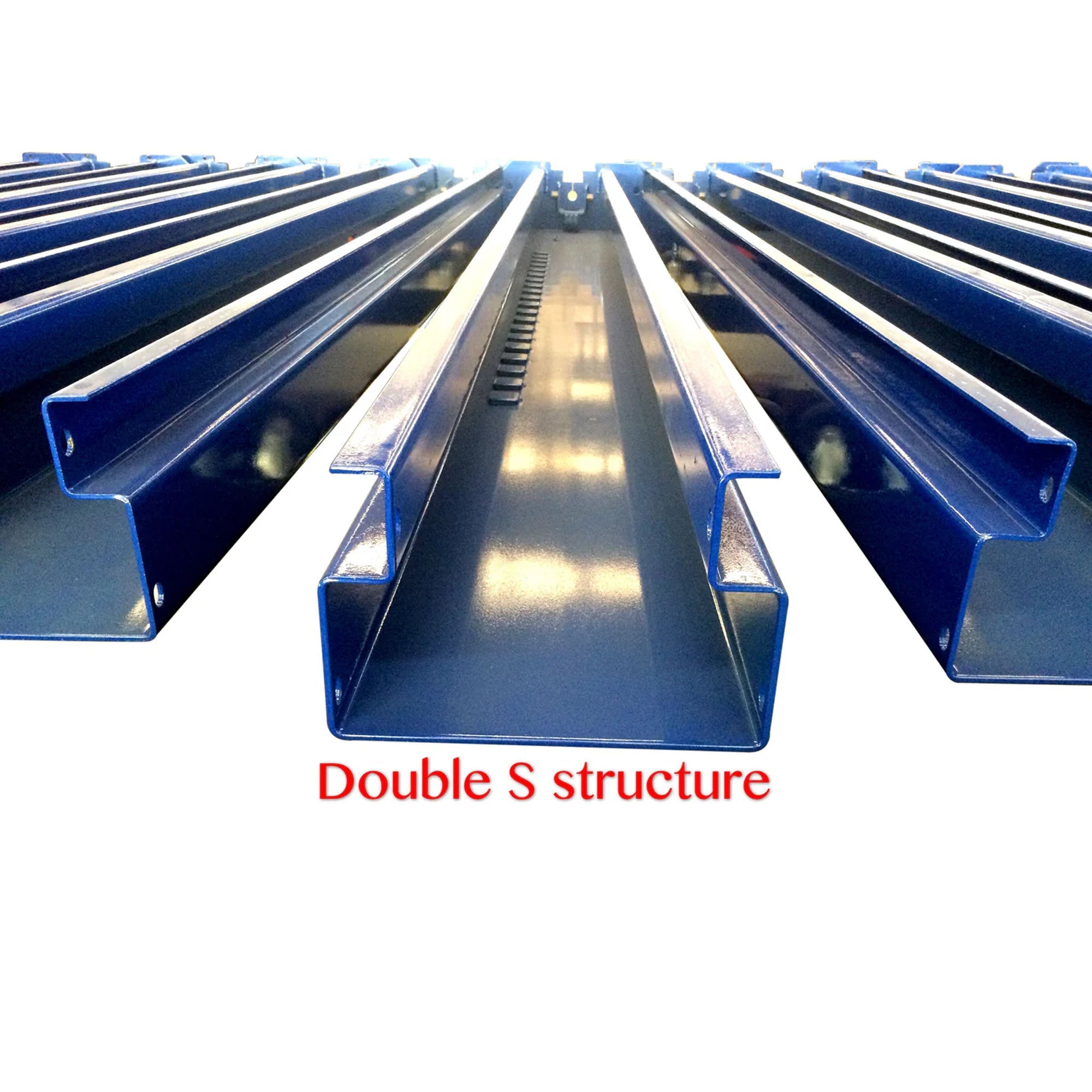

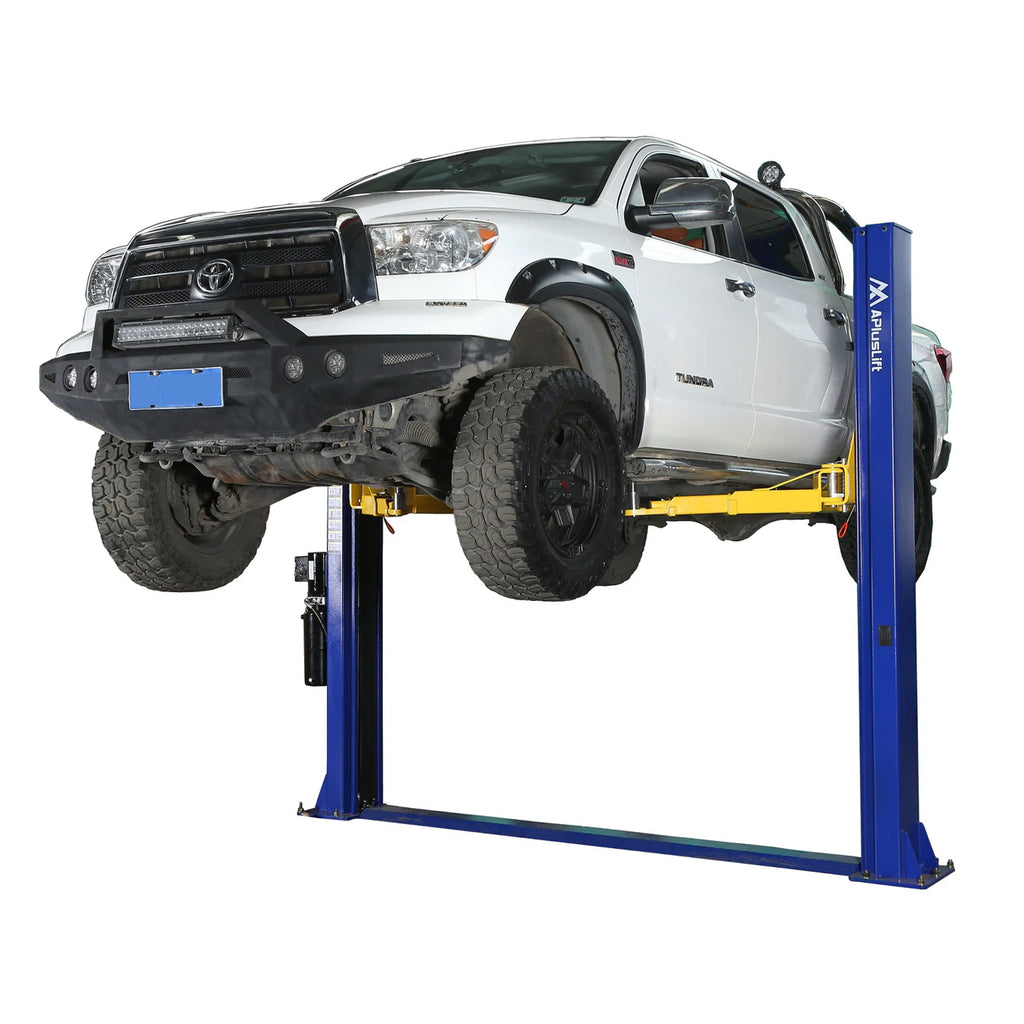

APlusLift HW-10KBP-A car lift (auto hoist) is one of the most affordable floor plate car lifts built with quality materials and good workmanship. The lift has a strong double "S" column design to support 10,000 LB capacity.
We are proud to offer an industry leading 3 year warranty for all parts (a $499 value)! We have all replacement and optional parts available for our lifts. We welcome suggestions to improve our products and service!
Free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expenses not reimbursed. See shipping policy below for limited access/remote/high-cost areas.
Warehouse Pickup Locations (Contact Us for $200 Discount): Charlotte (NC), Chicago (IL), Dallas (TX), Jacksonville (FL), Kansas City (MO), Mobile (AL), Mansfield (OH), Portland (OR), Tacoma (WA).
Frequently Asked Product, Order, and Shipping Questions and Technical Questions
Specifications | |||||||||
| Model | HW-10KBP-A (This Model) | HW-10KOH-A for Comparison | |||||||
| Manual | HW-10KBP-A Manual | HW-10KOH-A Manual | |||||||
| Style | Floor Plate | Overhead | |||||||
| Lock Release | Double Point Release | Double Point Release | |||||||
| Warranty | 3 Years (36 months) | 3 Years (36 months) | |||||||
| Lifting Capacity | 10,000 LB | 10,000 LB | |||||||

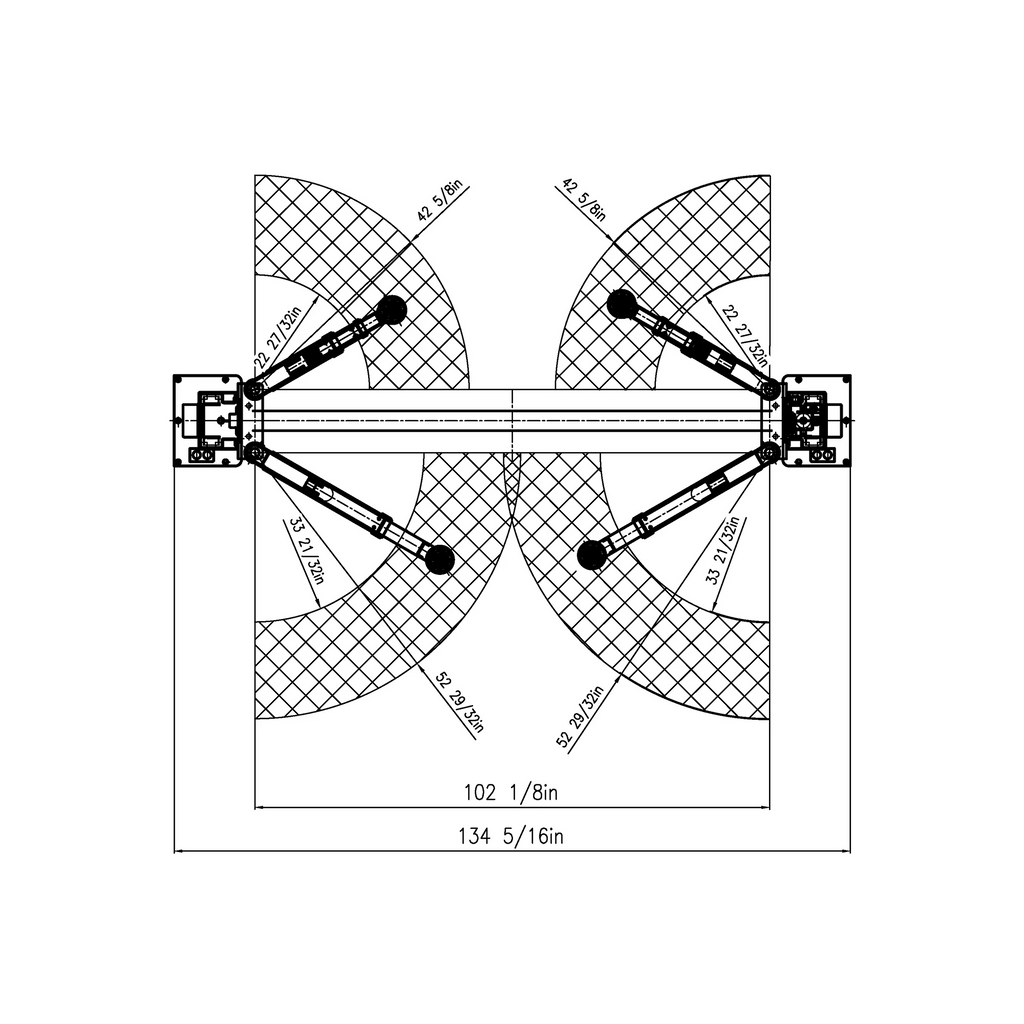

| Overall Height | 113 5/8" | 143 3/16" | |||||||
| Overall Width | 134 5/16" | 134 5/16" | |||||||
| Maximum Lift height with Truck Adapters | 81" | 81" | |||||||
| Maximum Lift height without Truck Adapters | 75" | 75" | |||||||
| Maximum lift height from bottom of the arm to the ground | 71" | 71" | |||||||
| Minimum Height of Adjustable Pads from Ground | 4" | 4" | |||||||
| Drive Through Width (Carriage to Carriage) | 100" | 100" | |||||||
| Column Inside to Inside | 109" | 109" | |||||||
| Column Outside to Outside | 123" | 123" | |||||||
| Column Cross Section | 11"L x 7"W | 11"L x 7"W | |||||||
| Floor Plate Cross Section | 10 5/8"W x 1 7/8"H | N/A | |||||||
| Driving Mode | Dual hydraulic cylinders, chain drive | Dual hydraulic cylinders, chain drive | |||||||
| Motor | 220V Single Phase 3HP 10A (recommend a 20A breaker) | 220V Single Phase 3HP 10A (recommend a 20A breaker) | |||||||
| Time to full rise | 50 seconds | 50 seconds | |||||||
| Hydraulic Oil | 3-5 gallons AW32/AW46 (not included) | 3-5 gallons AW32/AW46 (not included) | |||||||
| Shipping Weight | 1370 LB | 1470 LB | |||||||

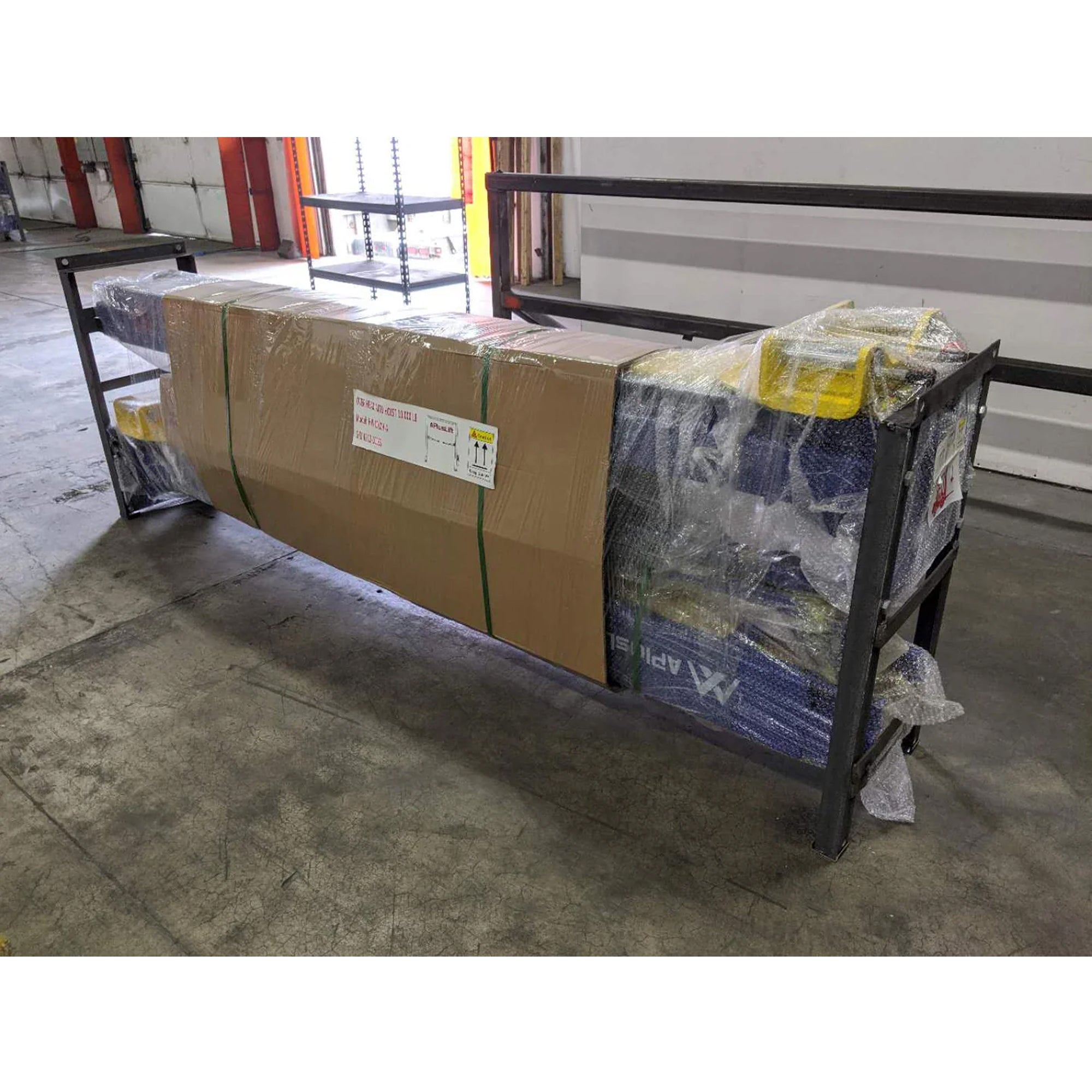

| Shipping package size | 113"L x 22"W x 40"H | 113"L x 22"W x 40"H | |||||||
| Concrete Requirement | 6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000LB and below) | ||||||||
| Parts Included |
| ||||||||
| Optional Parts | 2 3/4" and 6" Tall Truck Adapters | ||||||||

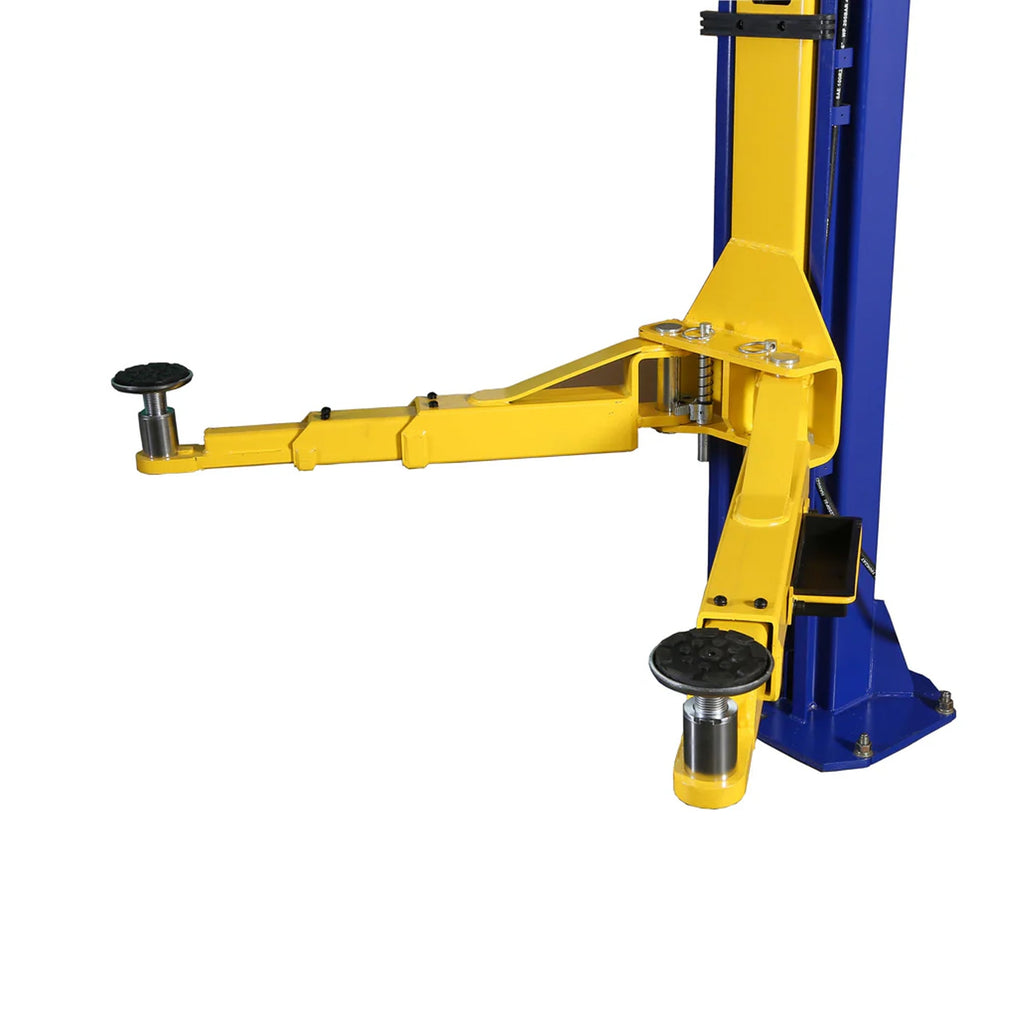

| Arm Assembly | Combo (symmetrical and asymmetrical) Arm Assembly | ||||||||
| Front Arms | Straight Front 3 Stage reach from 22 7/8" to 42 5/8" | ||||||||
| Back Arms | Straight Rear 2 Stage reach from 33 5/8" to 52 7/8" | ||||||||
| Column Steel Thickness | 13/64" | ||||||||
| Carriage Steel Thickness | 15/64" | ||||||||
| Carriage Yoke Thickness | 9/16" | ||||||||
| Arm Steel Thickness | 15/64" | ||||||||
| Base Plate Steel Thickness | 5/8" | ||||||||
| Model | HW-10KBP-A (This Model) | HW-10KOH-A for Comparison | |||||||
Features
- CE Certified Lift Structure and Hydraulic System
- Third party tested with a dynamic load capacity of 115%
- Third party tested with a static load capacity of 150%
- Durable hydraulic system
- Easy to operate and maintain
- Double point safety lock release
- Double seal rings protecting PU Material
- Carriage material Q355 (ASTM A572), stronger than normal Q235 Steel
- Lifting operation by pressing "UP" button on motor
- Manual lowering operation by pressing lever

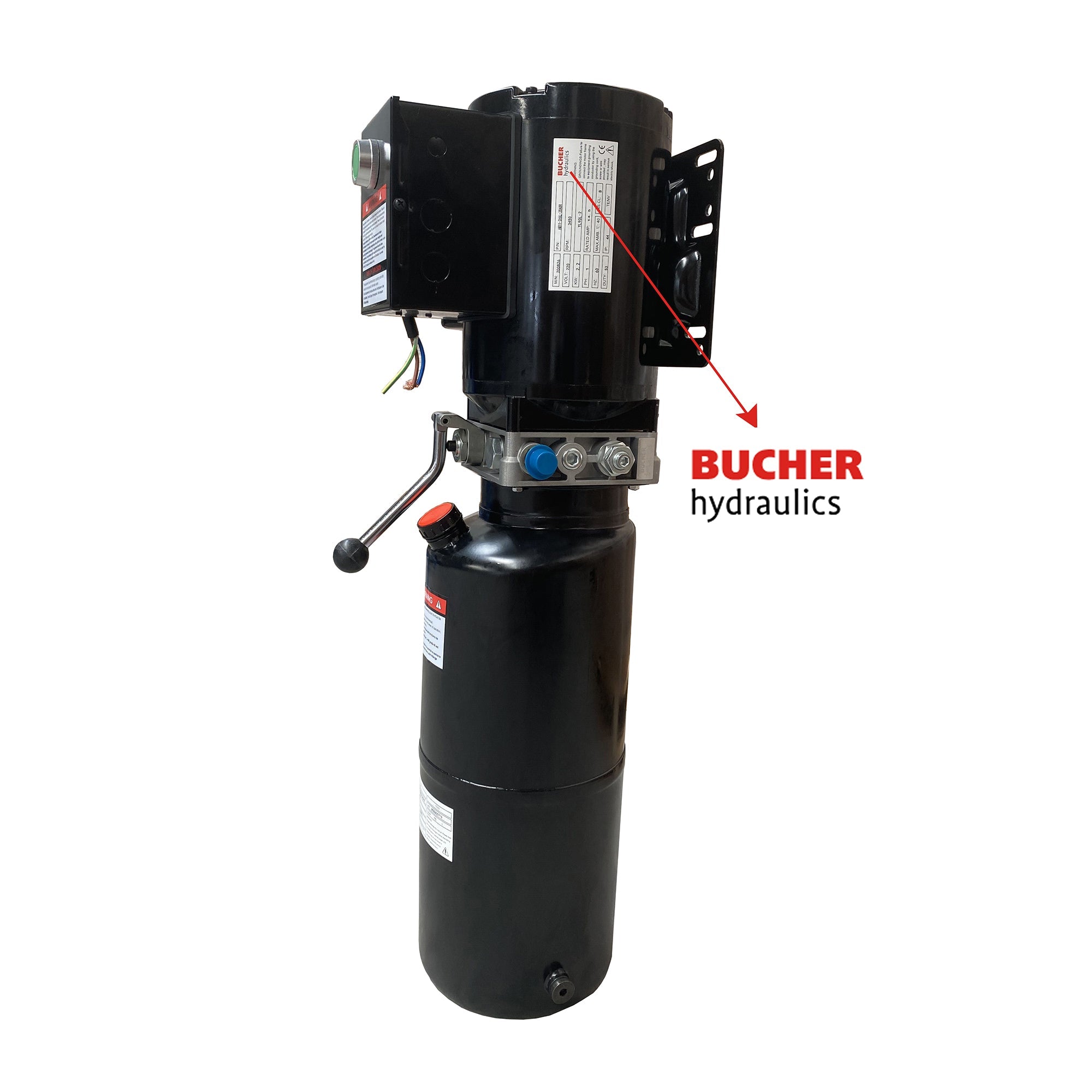

- Relief valve built in power pump to prevent overloading

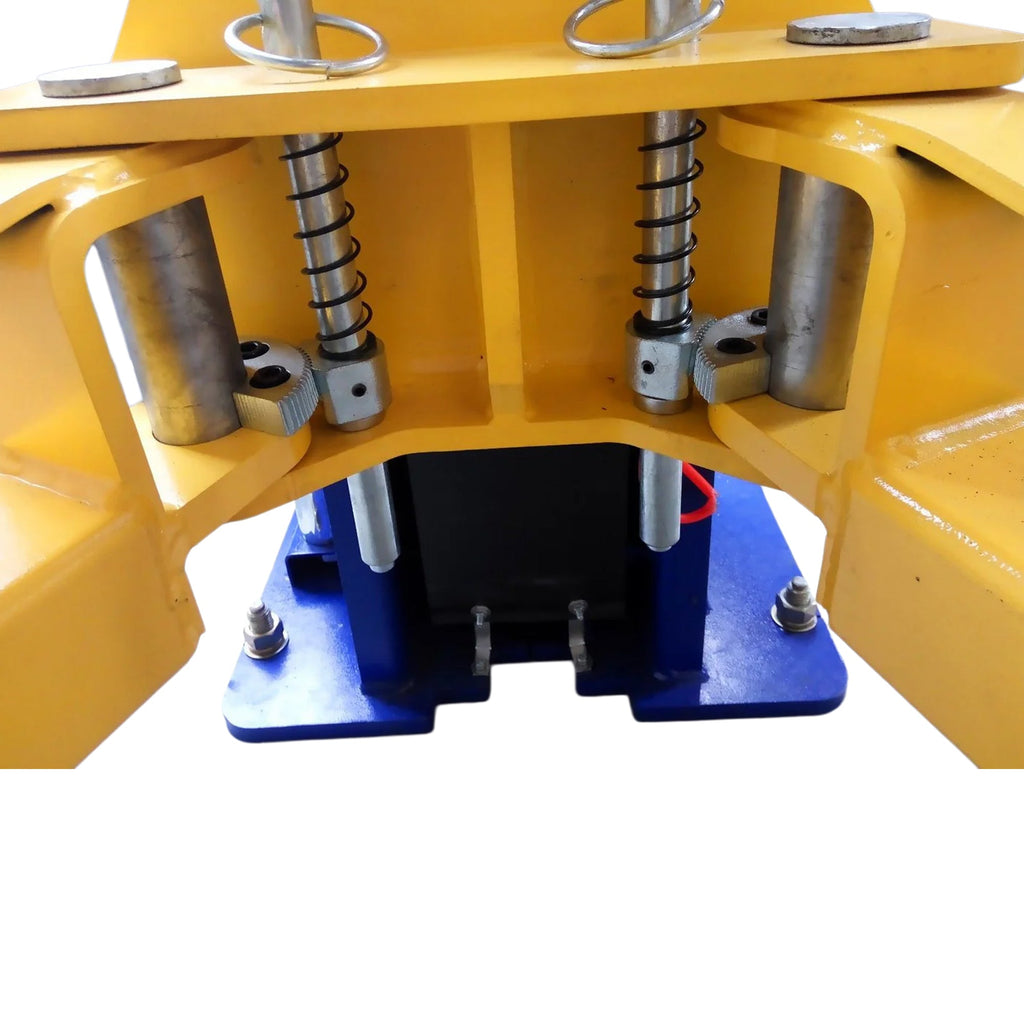

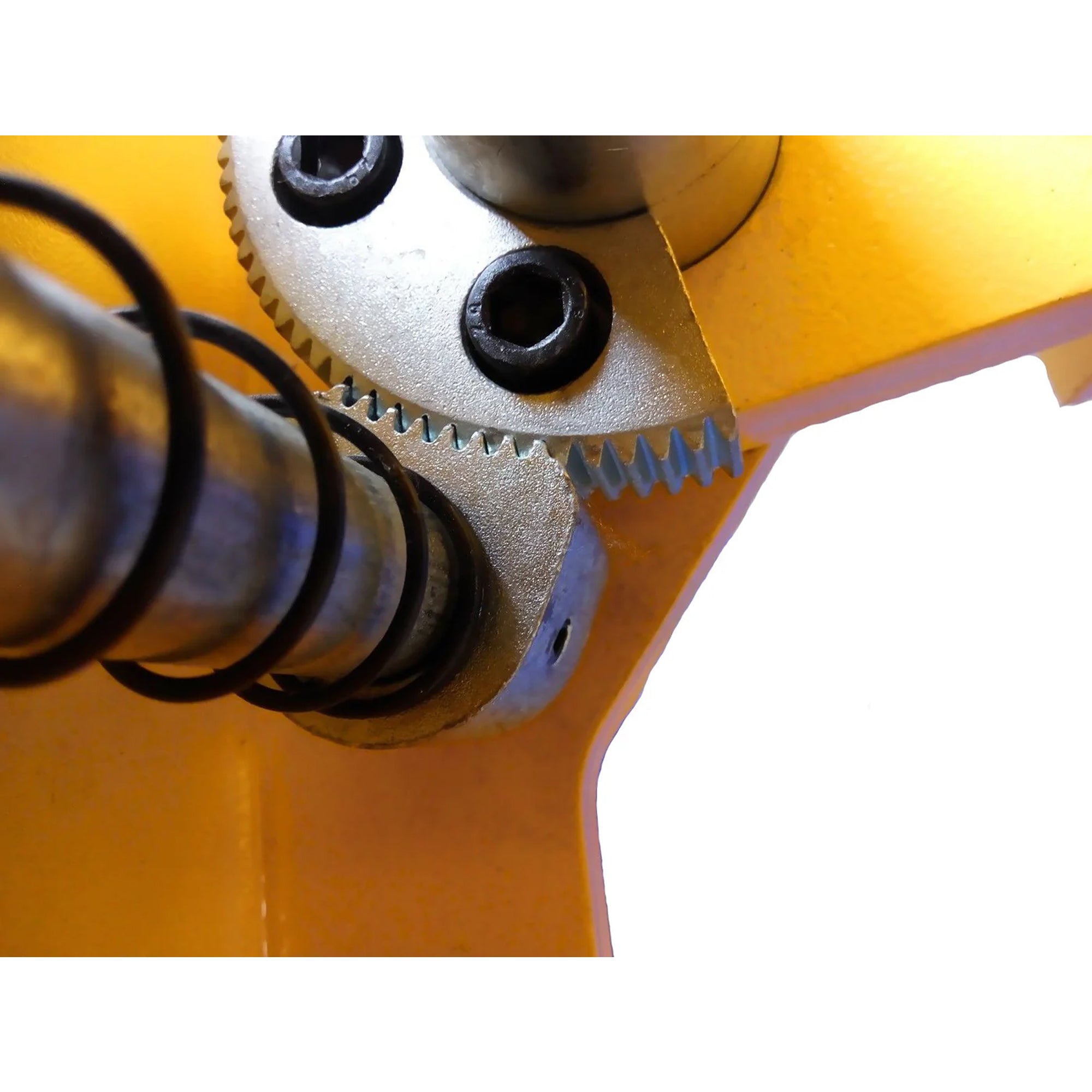

- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/8" diameter cable and 5" pulley that reduce high stress on synchronization process and increase cable life
- Upgraded floor plate, beveled diamond plate steel 5/32" with supporting bracket.
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
