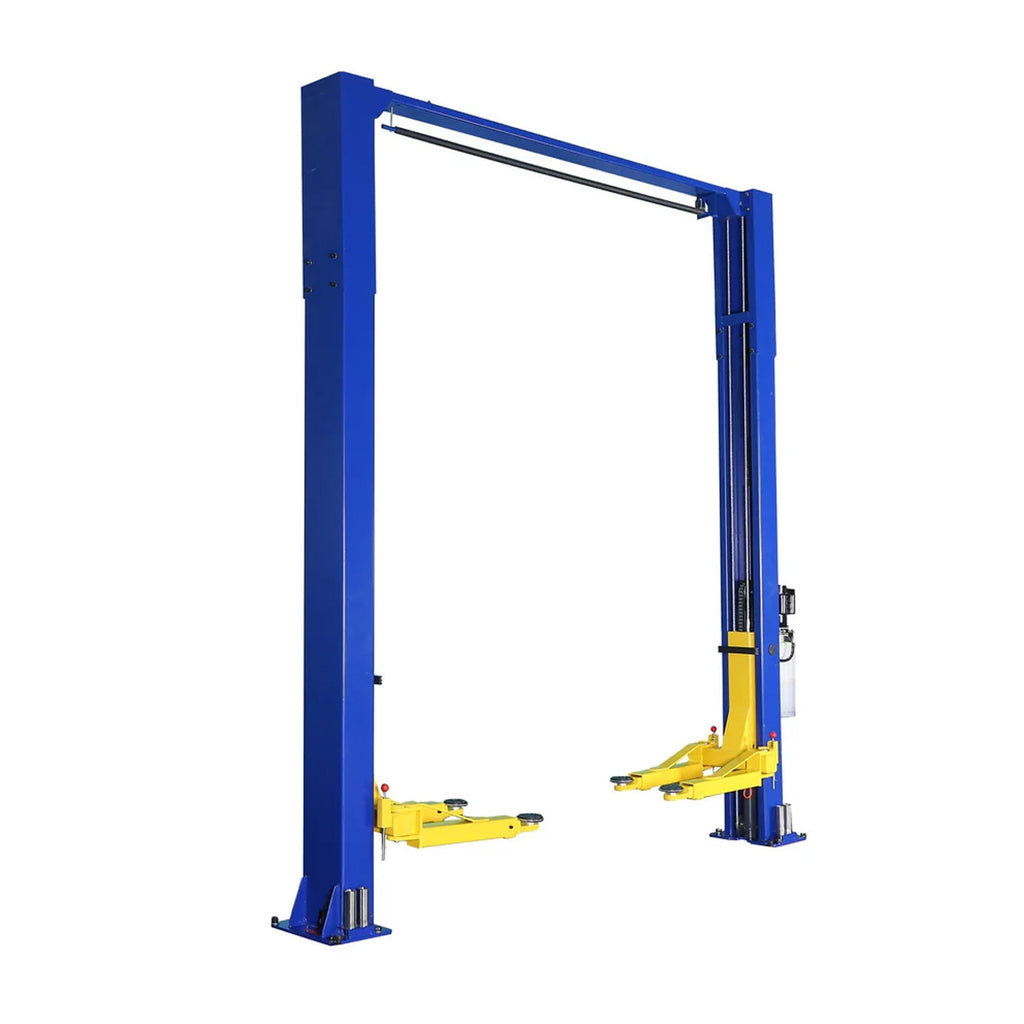

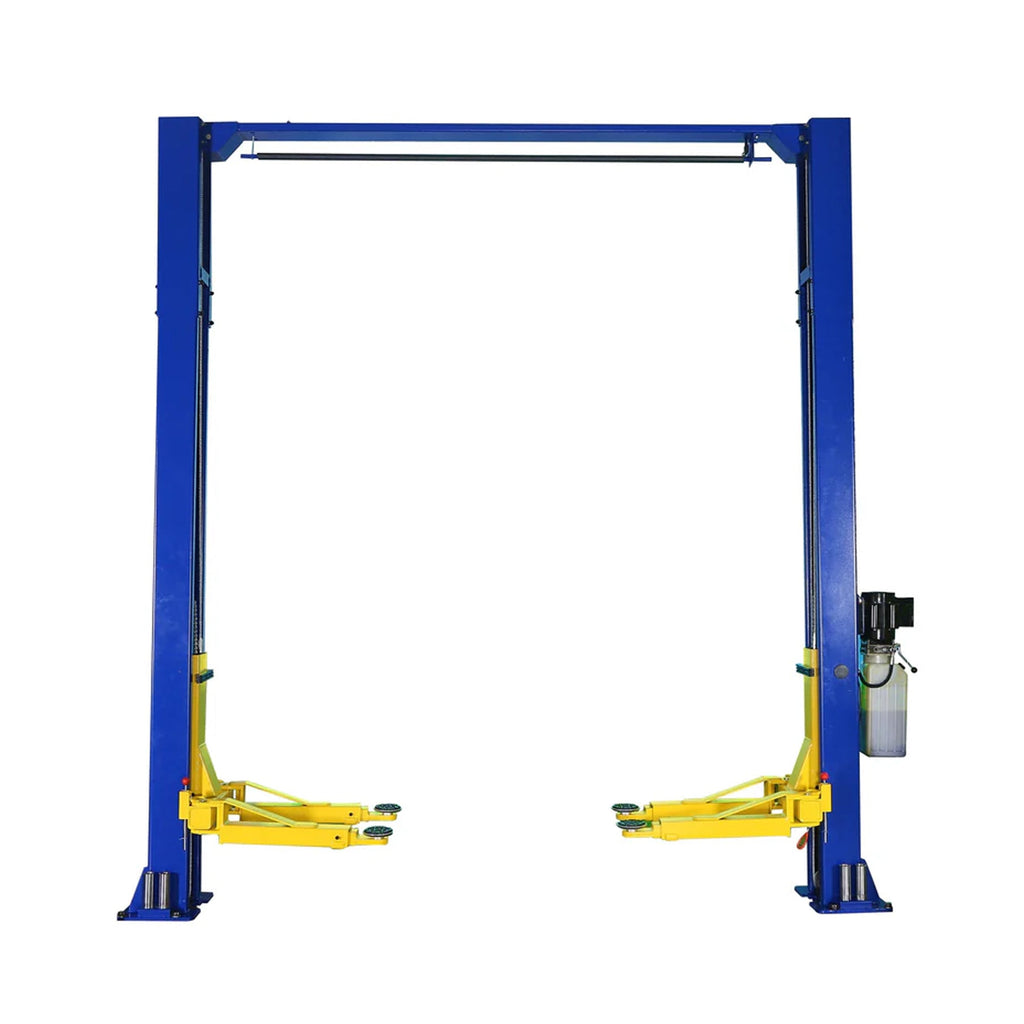

APlusLift HW-9KOH 9,000LB 2-Post Over Head Car Lift
$1,499.00
Sale price
$1,499.00
Regular price
$2,399.00
All 2-Post Car Lifts
-
36 Months Parts Warranty
-

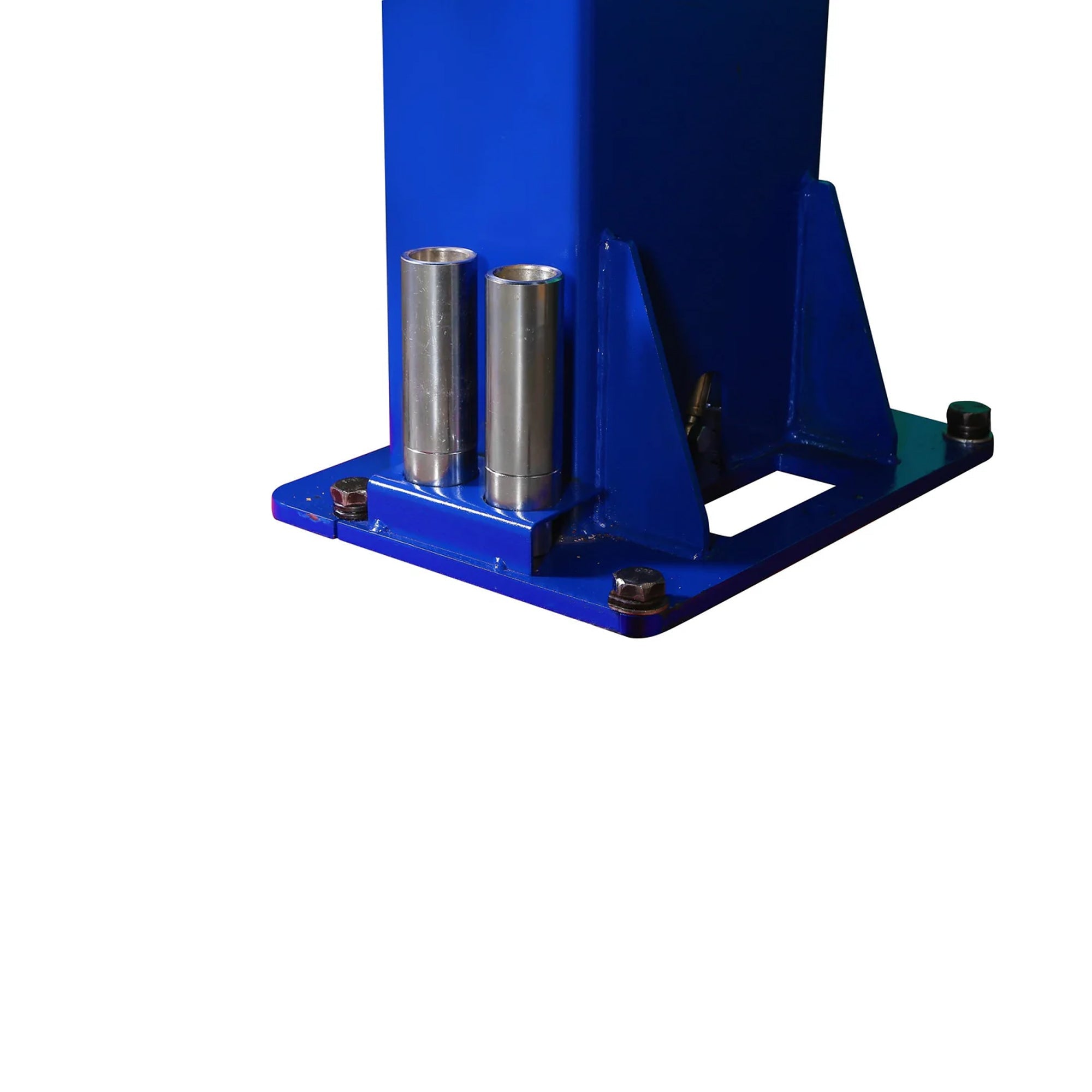

6'9" Lift Height Maximum with Truck Adapters
-
All Robot Welded Structure with Durable Powder Coated Finish
-
Double Seal Rings Protecting PU Material
APlusLift HW-9KOH car lift (auto hoist) is one of the most affordable over head car lift with 9,000 LB Heavy Duty.
APlusLift HW-9KOH car lifts are built with quality materials and good workmanship. We do not use recycled materials to save cost for parts such as cylinder seal rings. Suggestions to improve our products and service are always welcome!
Free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.
Warehouse Pickup Locations (Contact Us for $200 Discount): Portland (OR), Dallas (TX), Jacksonville (FL) and Mobile (AL).
Frequently Asked Product, Order, and Shipping Questions and Technical Questions
Specifications | |||||||||
| Model | HW-9KOH (This Model) | HW-10KOH-A (for Comparison) | |||||||
| Manual | HW-9KOH Manual | HW-10KOH-A Manual | |||||||
| Style | Overhead | Overhead | |||||||
| Lock Release | Double Point Release | Double Point Release | |||||||
| Warranty | 3 Years (36 months) | 3 Years (36 months) | |||||||
| Lifting Capacity | 9,000 LB | 10,000 LB | |||||||
| Overall Height | 143 3/16" | 143 3/16" | |||||||
| Overall Width | 134 5/16" | 134 5/16" | |||||||
| Maximum Lift height with Truck Adapters | 81" | 81" | |||||||
| Maximum Lift height without Truck Adapters | 75" | 75" | |||||||
| Minimum Height of Arm Top | 4" | 4" | |||||||
| Carriage to Carriage Width (Drive-through clearance) | 100" | 100" | |||||||
| Column to Column Width | 109" | 109" | |||||||

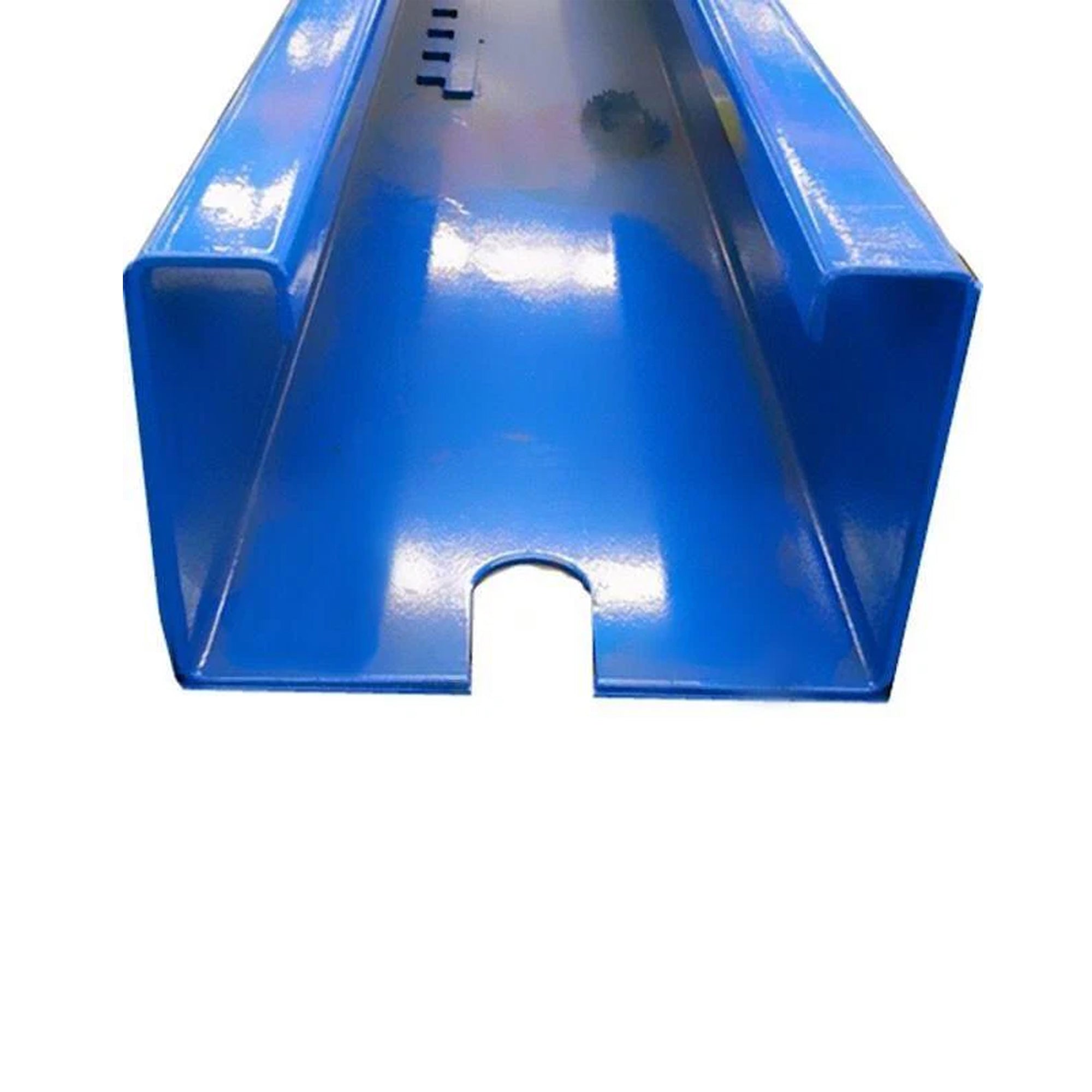

| Column Cross Section | 11"L x 7"W | 11"L x 7"W | |||||||
| Shipping Weight | 1300 LB | 1470 LB | |||||||
| Shipping package size | 113"L x 40"W x 22" H | 113"L x 22"W x 40" H | |||||||
| Concrete Requirement | 4" at 3500psi reinforced with fiberglass or steel | 6" thick at 3500 psi reinforced with fiberglass or steel | |||||||

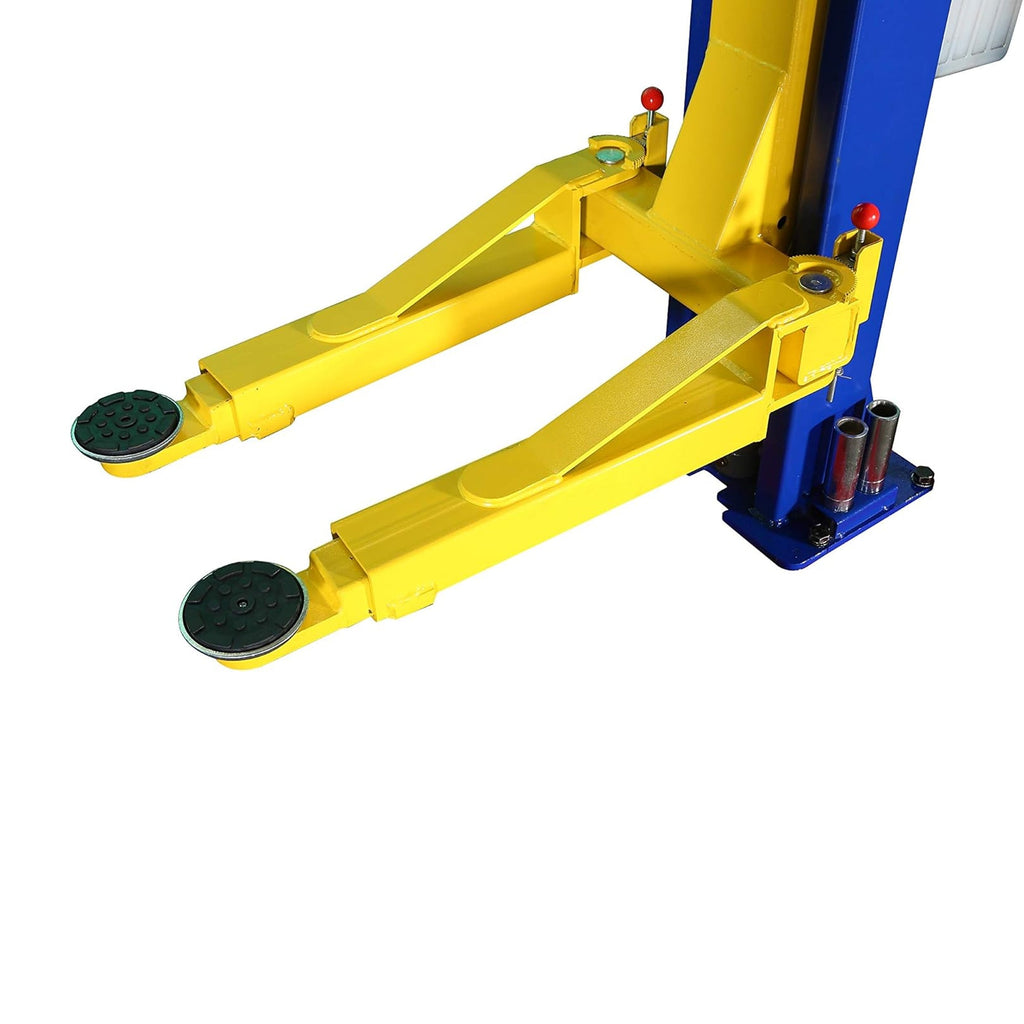

| Arm Assembly | Symmetrical Arm Assembly | Combo (symmetrical and asymmetrical) Arm Assembly | Front Arms | Straight Front 2 Stage reach from 30 1/8" to 45 3/8" | Straight Front 3 Stage reach from 22 7/8" to 42 5/8" | ||||
| Rear Arms | Straight Rear 2 Stage reach from 30 1/8" to 45 3/8" | Straight Rear 2 Stage reach from 33 5/8" to 52 7/8" | |||||||
| Driving Mode | Dual hydraulic cylinders, chain drive | ||||||||

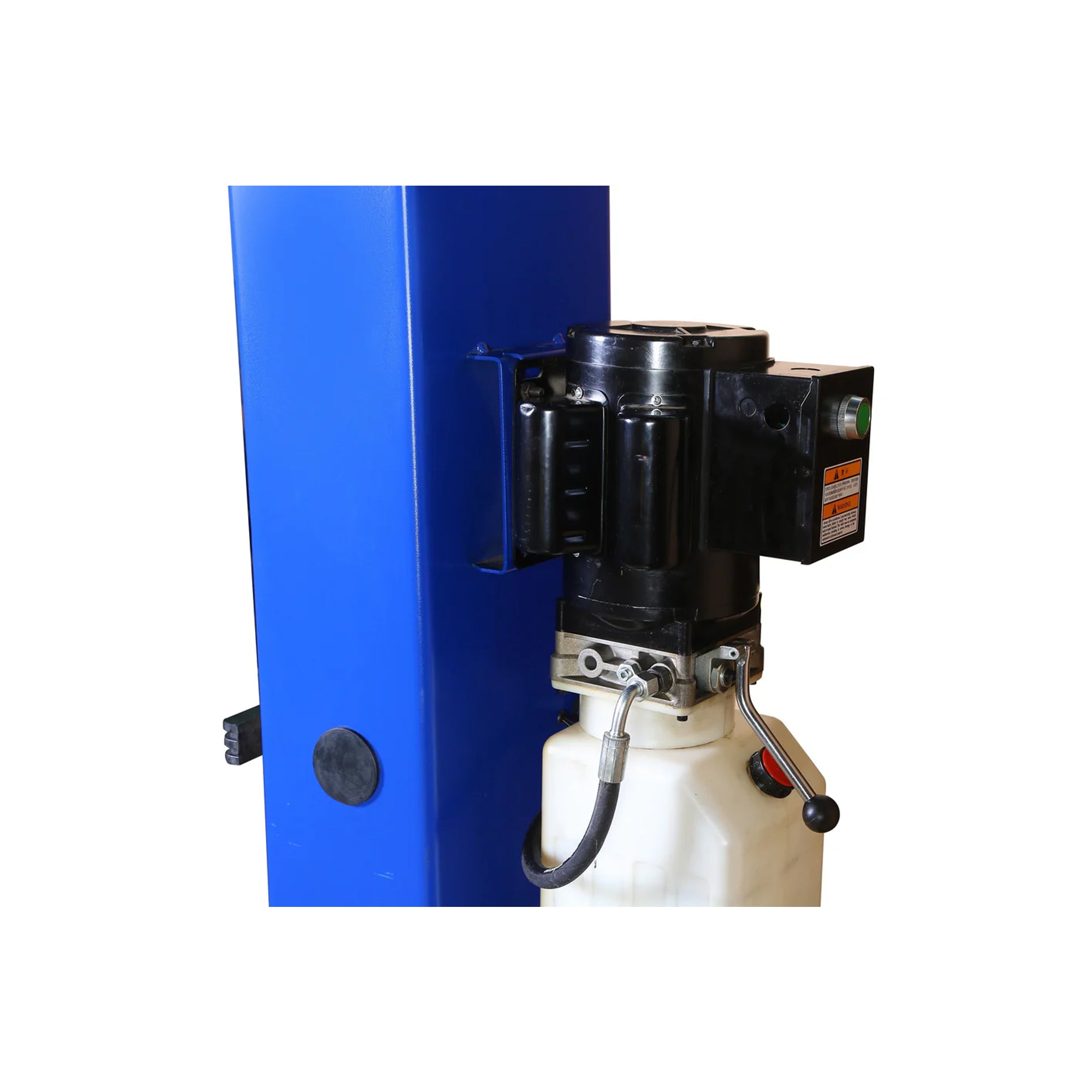

| Motor | 220V Single Phase 3HP 10A (recommend a 20A breaker) | ||||||||
| Hydraulic Oil | 3-5 gallons AW32/AW46 (not included) | ||||||||
| Time to full rise | 50 seconds | ||||||||
| Parts Included |
| ||||||||
| Stiffened Base Plate Thickness | 5/8" | ||||||||
| Model | HW-9KOH (This Model) | HW-10KOH-A (for Comparison) | |||||||
Features

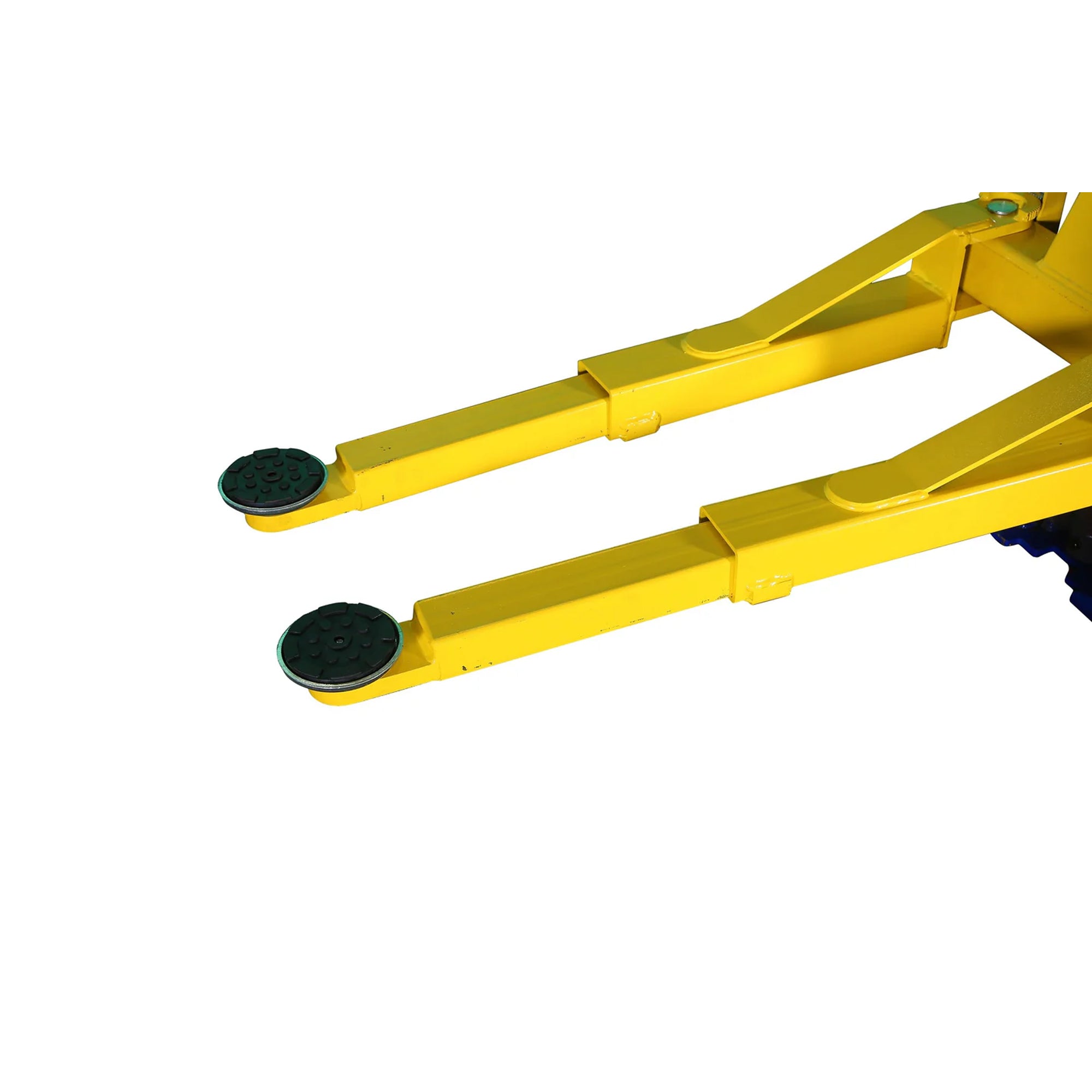

- Equal length of front and rear arm design
- Double point safety lock release

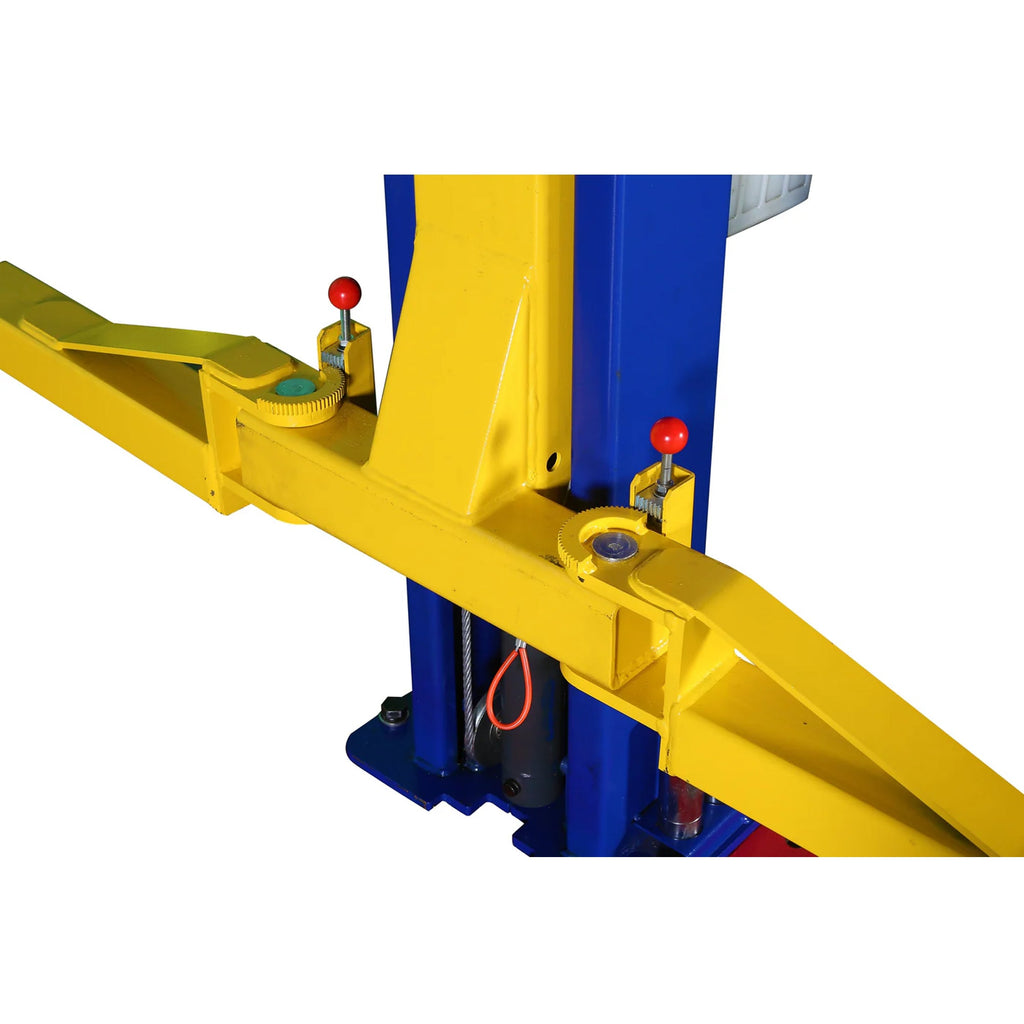

- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/10" diameter cable and 4 1/5" pulley that reduce high stress on synchronization process and increase cable life

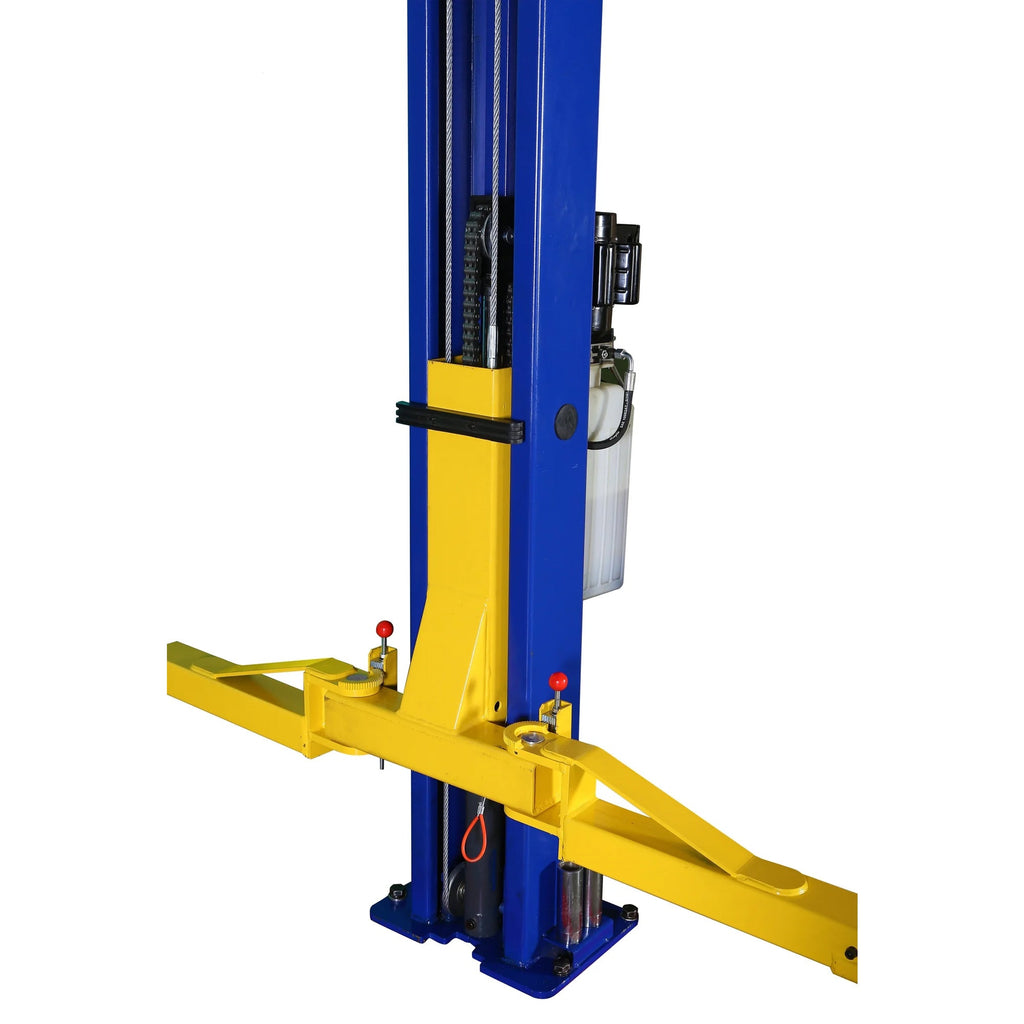

- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
- Lifting operation by pressing "UP" button on motor
- Manual lowering operation by pressing lever
